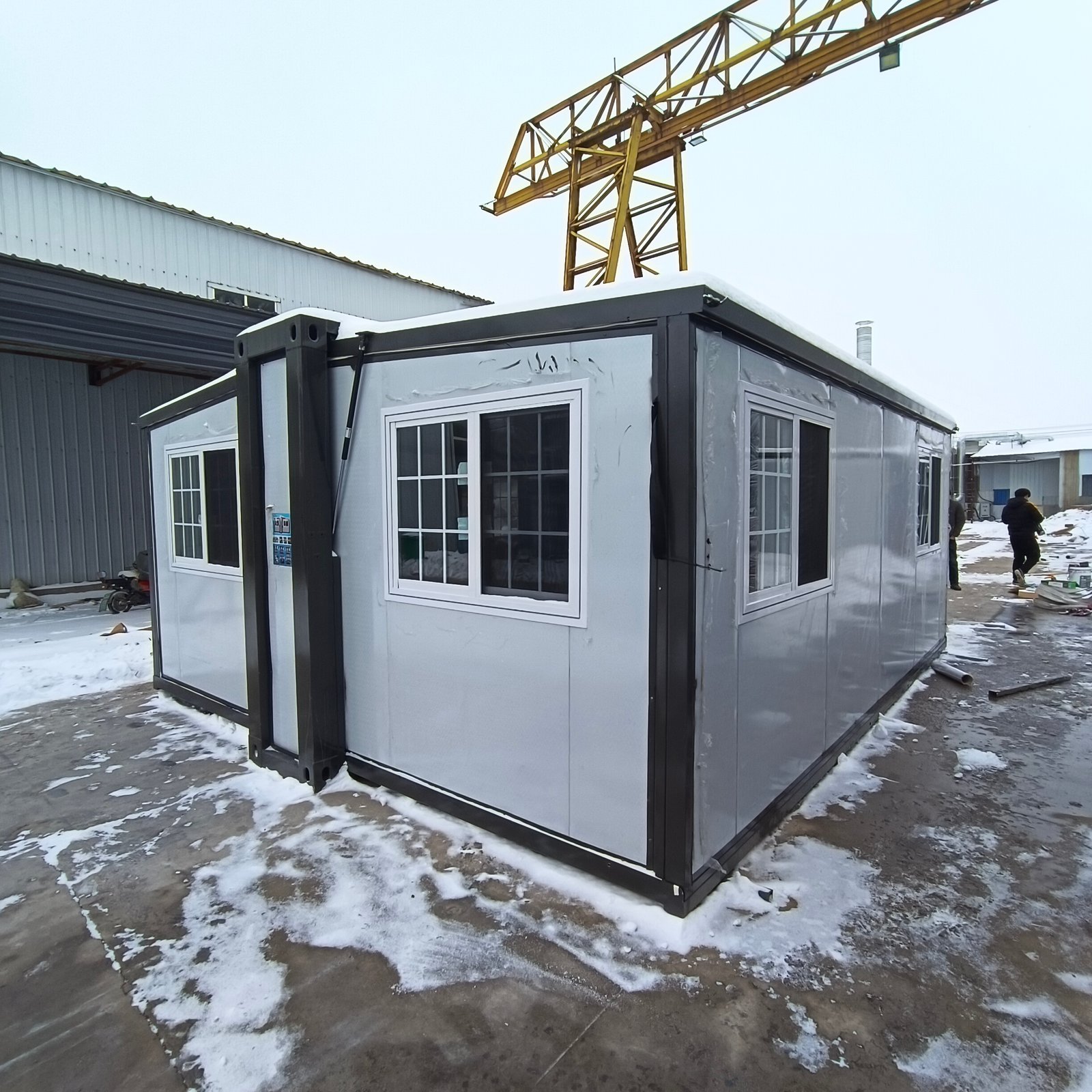

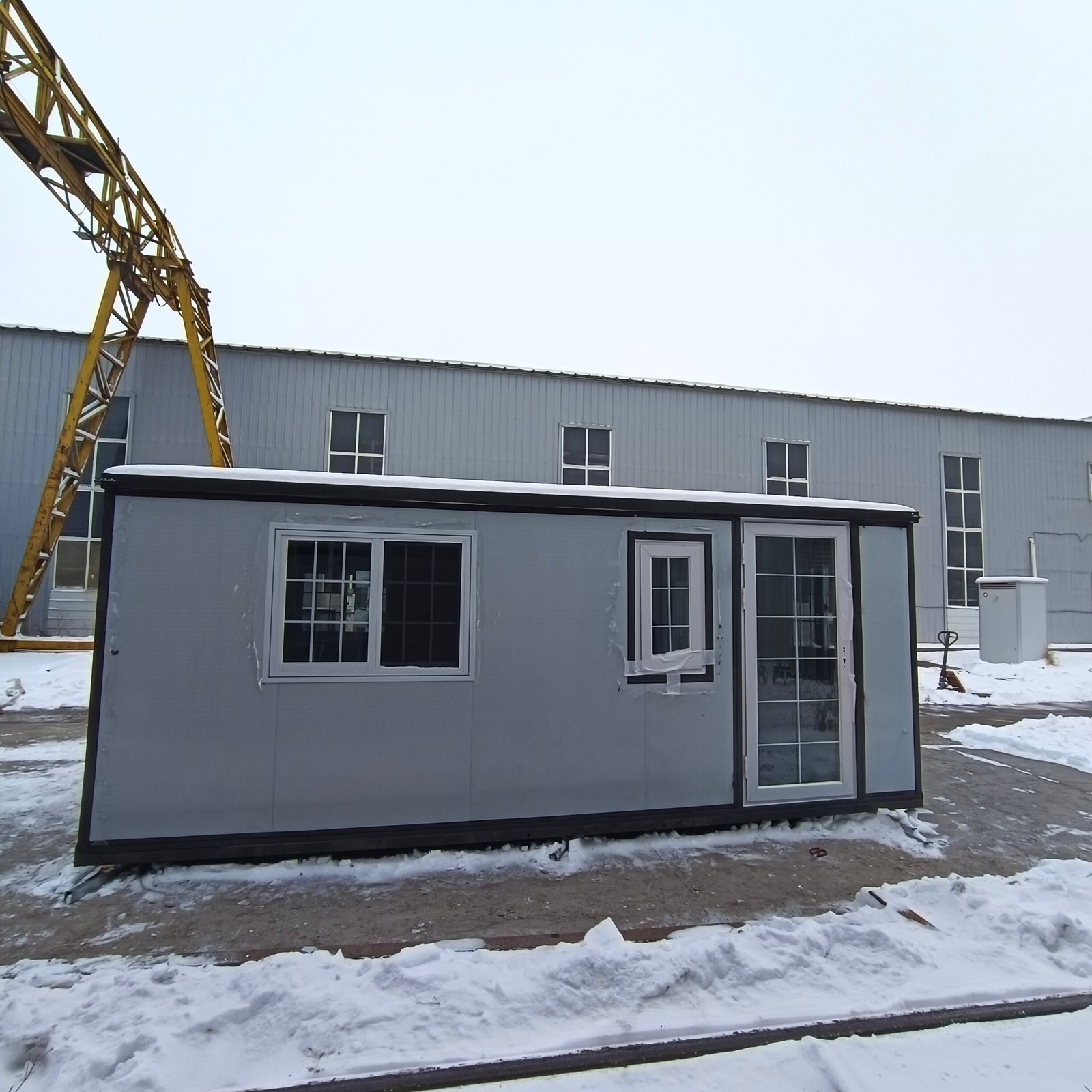

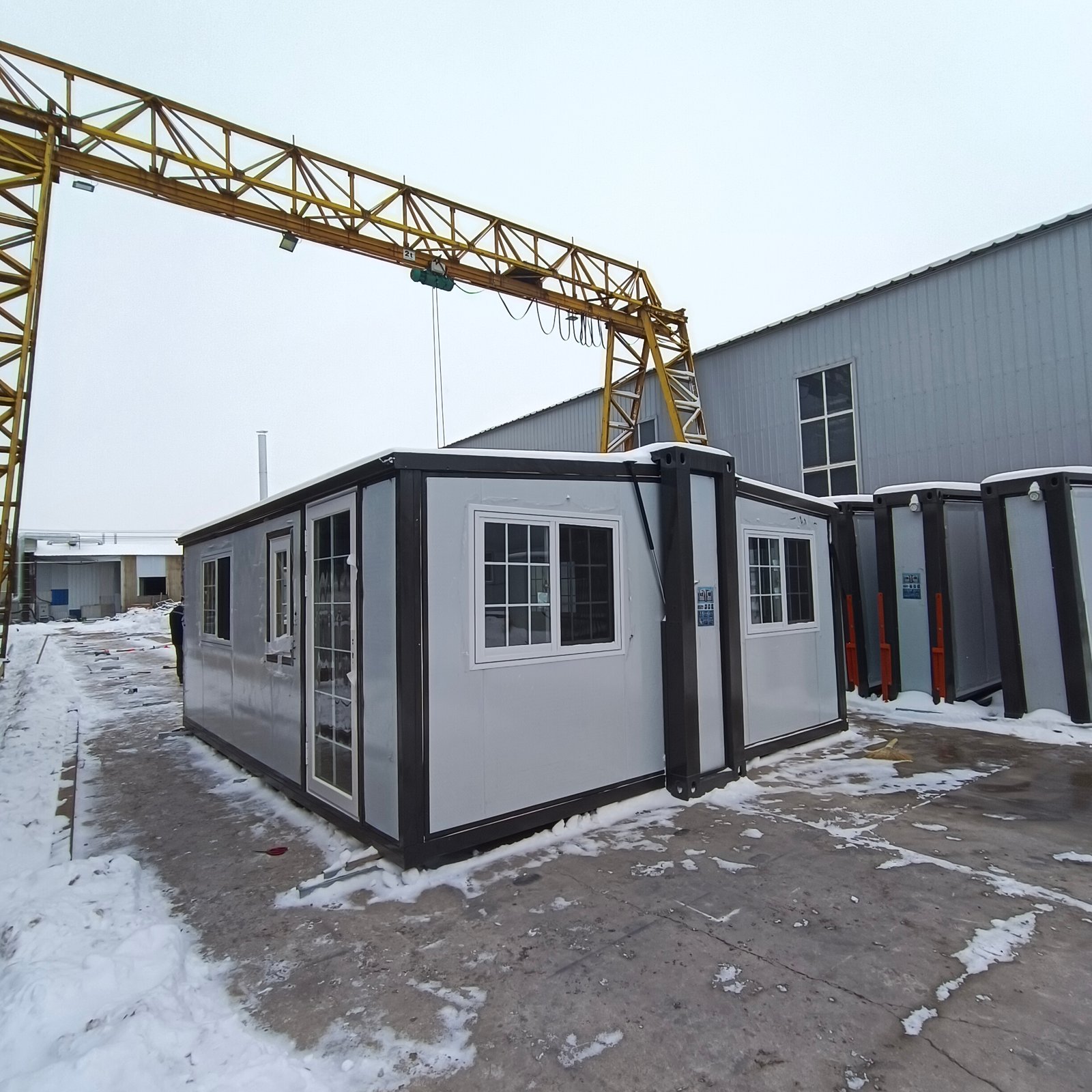

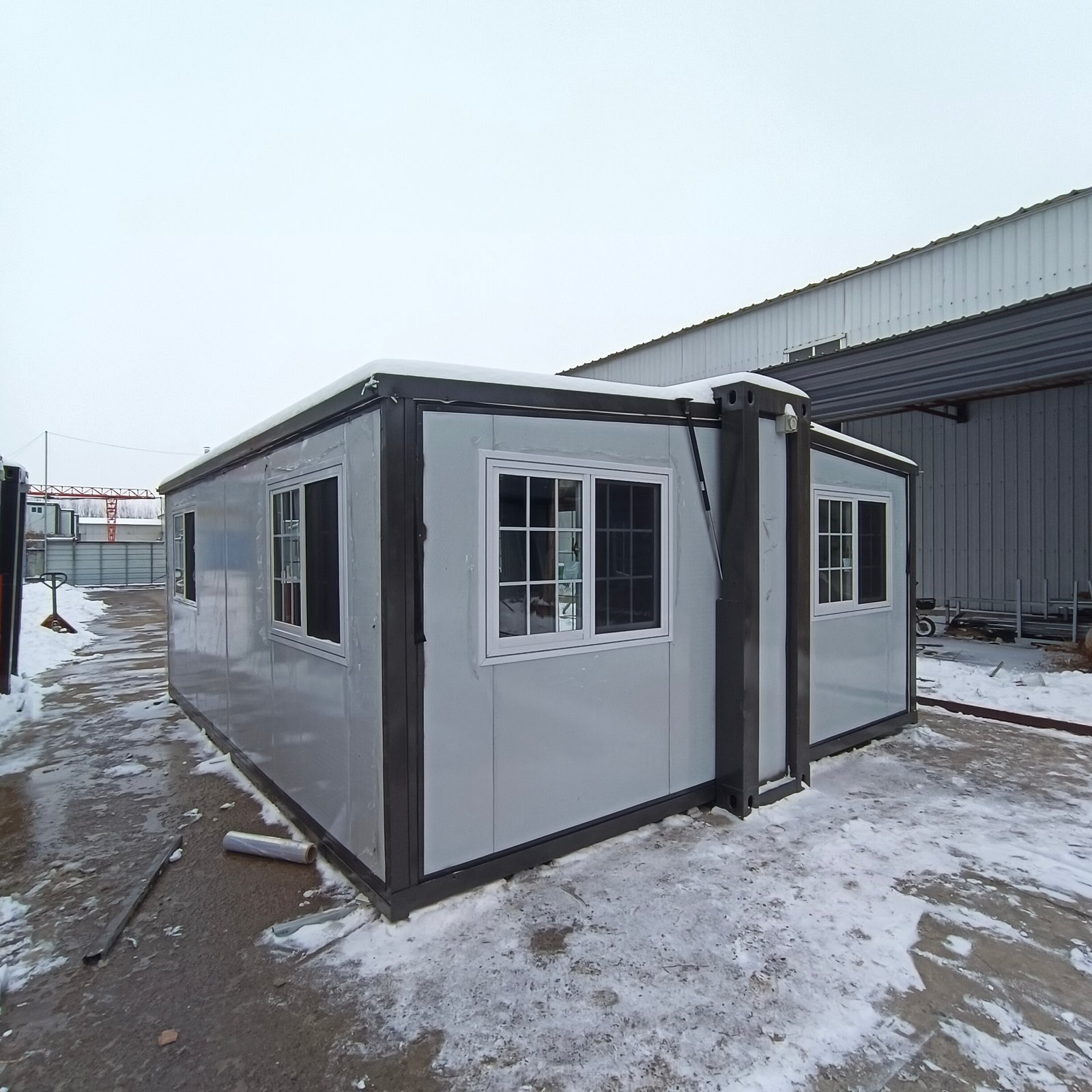

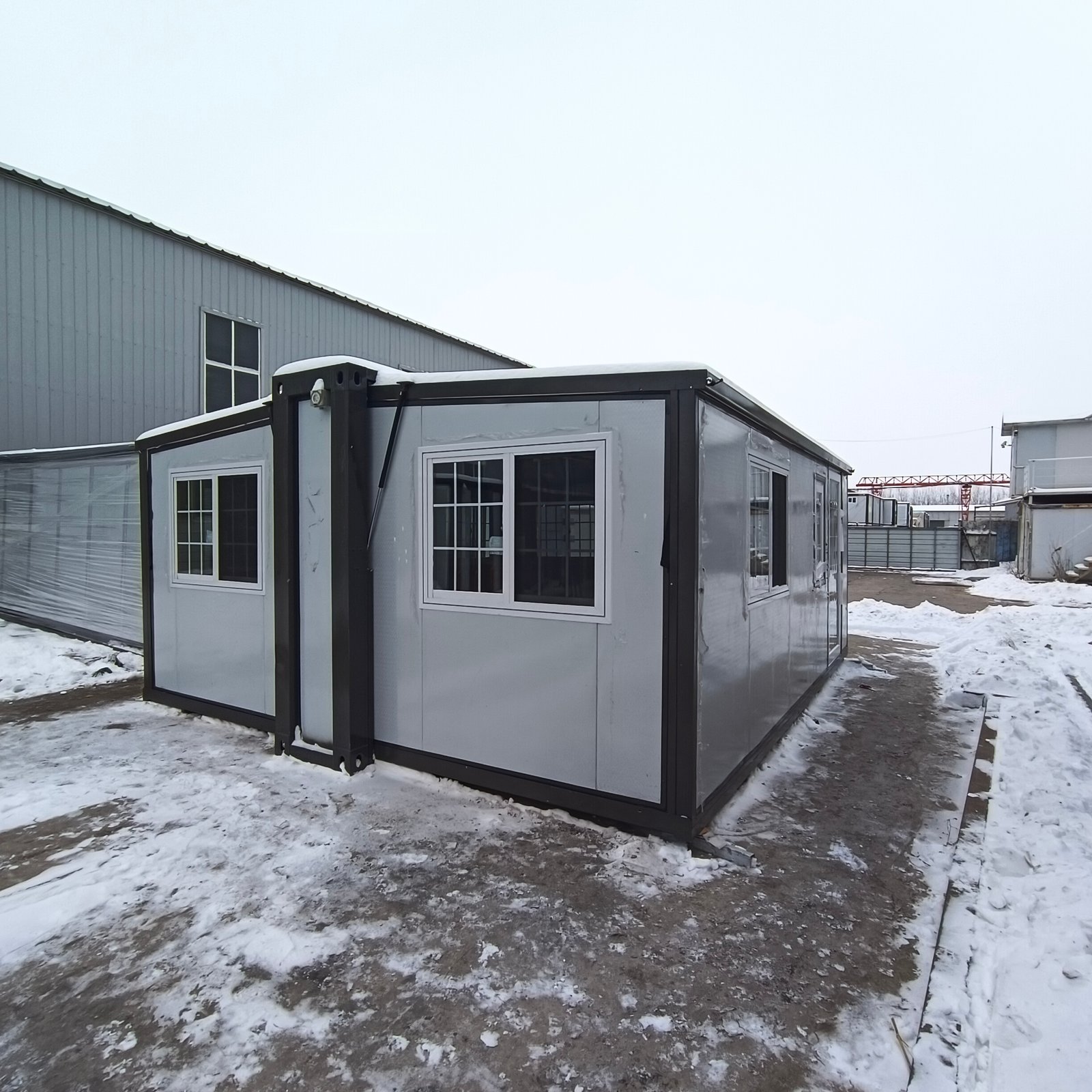

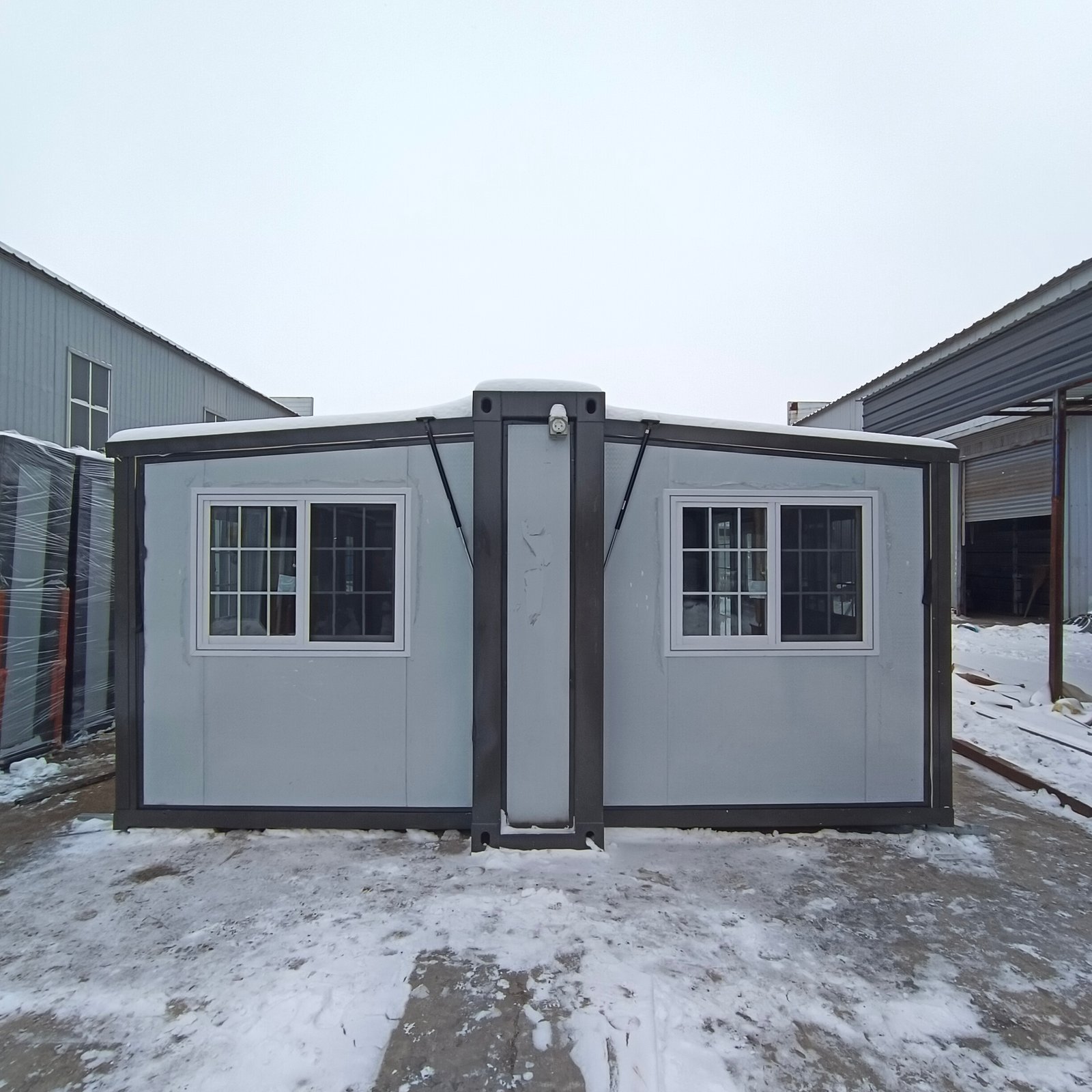

The Compact Expandable Container House is the ideal solution for those seeking compact and efficient living. Its foldable design allows for easy transport and setup, offering a spacious environment once expanded, all while maintaining portability and affordability.
Specifications
| Basic Information | Expanded Size(mm)L*W*H | L5900*W4920*H2480 |
|---|---|---|
| Intermal Size(mm)L*W*H | L5640*W4640*H2240 | |
| Folded Size(mm)LW*H | L5900*W700*H2480 | |
| Total weight (kg) | 2000-3000 | |
| Framework | Top Beam of the Middle Room | 80*100*2.5mm Q235B |
| Bottom Beam of the Middle room | 80*100*2.5mm Q235B | |
| End Side Beam | T2mm Q2358 | |
| Main Column | 150*210*2mm Q235B | |
| Sidewall Framework | Special P tube 40*80*1.5mm Q235B | |
| Subframe | 40*60*1.5mm Q235B | |
| Corner Fitting | 150*210*160*4mm Q235B | |
| Hinge | 13mm galvanized hinge | |
| Protective Coatings for the Whole Framework | Electrostatic spraying | |
| Ceiling Frame of the Middle Room | 80*100*2.5mm square tube | |
| Ceiling Frame of the Side Room | 40*60*1.5mm square tube | |
| Roof | External Roof | 50mm EPS Purification plate |
| Interior Roof | V200 Inner ceiling | |
| Wall | Thermal Insulation Wall of the Middle Room | 50mm EPS purification plate |
| Side Wall | 75mm EPS plate, 0.35mm double sided colored steel panel | |
| Partition Wall | 50mm EPS purification plate, 0.35mm double -sided colored steel panel | |
| Floor | Floor of the Middle Room | 18mm cement floor + 2mm PVC leather floor |
| Floor of Side Room | 18mm bamboo plywood floor + 2mm PVC leather floor | |
| Electrical System | 1.All electrical products are CE certified, strictly installed in accordance with moisture -proof specifications, and connected to electrical appliances according to circuit engineering specifications. 2.lindoor electric system: LED light, ceiling light, general three-hole socket, general three hole socket, 63A leakage protector. Voltage: 110V, 50HZ. |
|
| Entry Door | steel secuirty door 1970*970mm*1pc | |
| Window | PVC double glass casement window*4pcs(920*920mm) | |
We Xiamen Umd Industrial Co., Ltd. hereby declare that the goods exported to AustraliaDO NOT contain asbestos HAVE NOT been exposed to asbestos in their manufacture.
