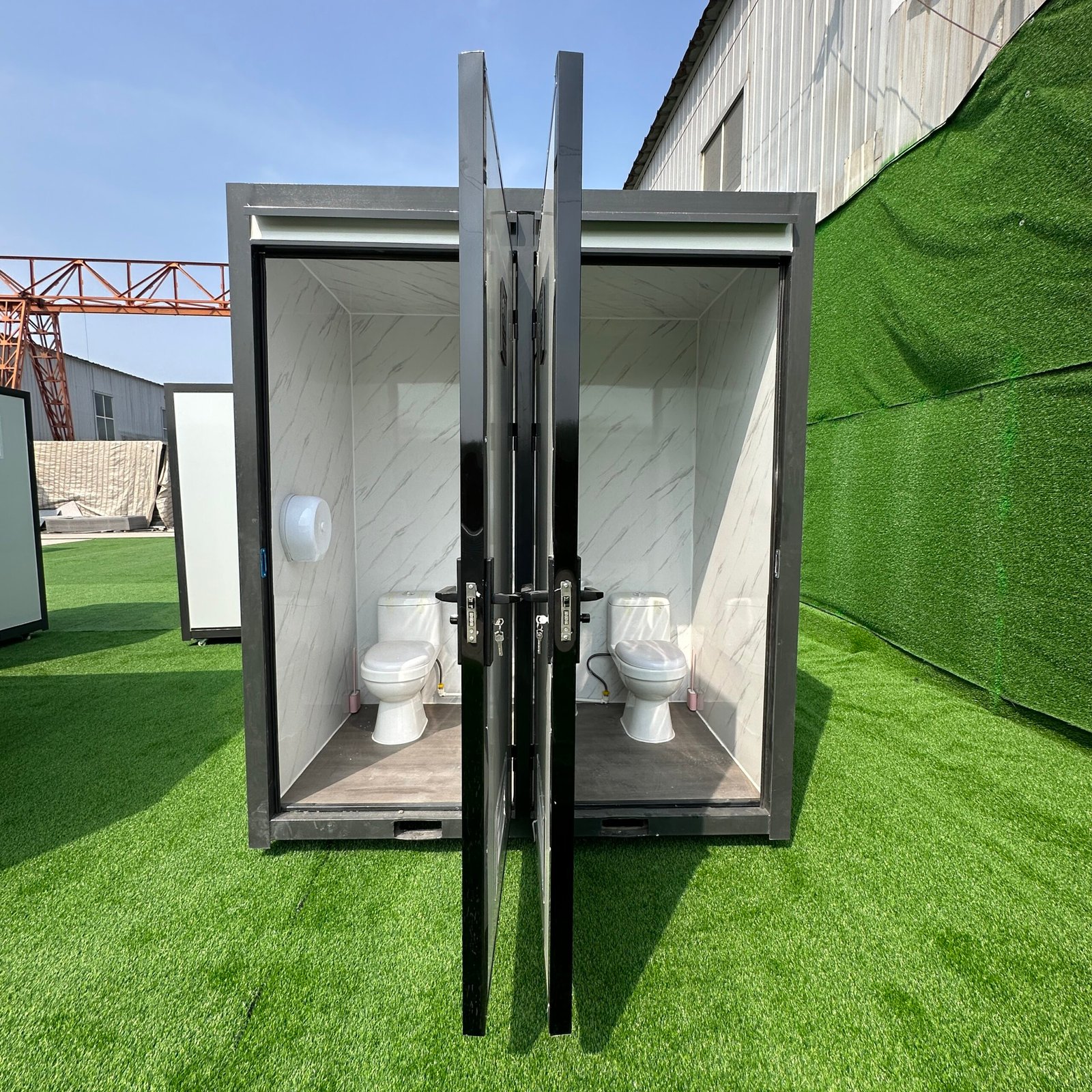

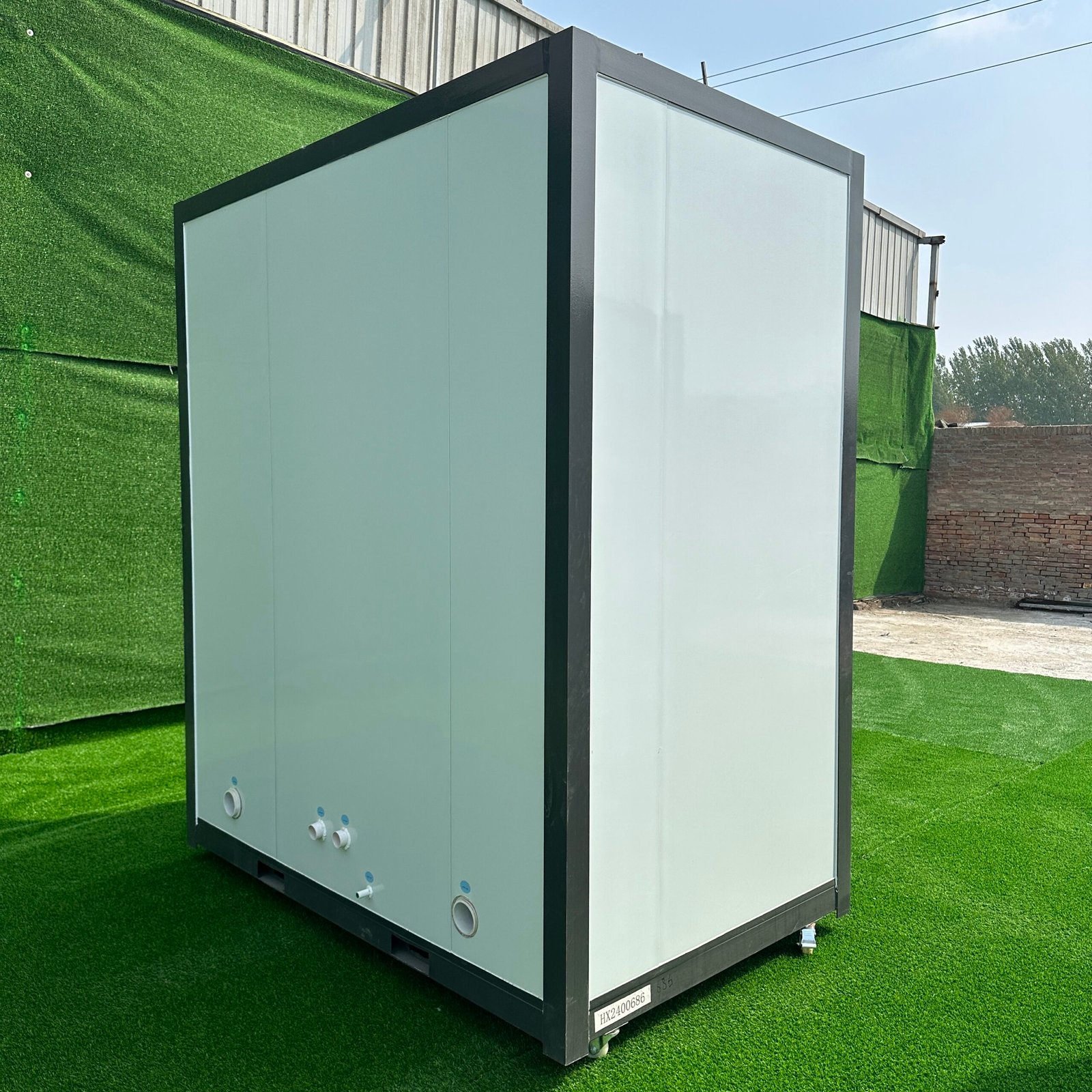

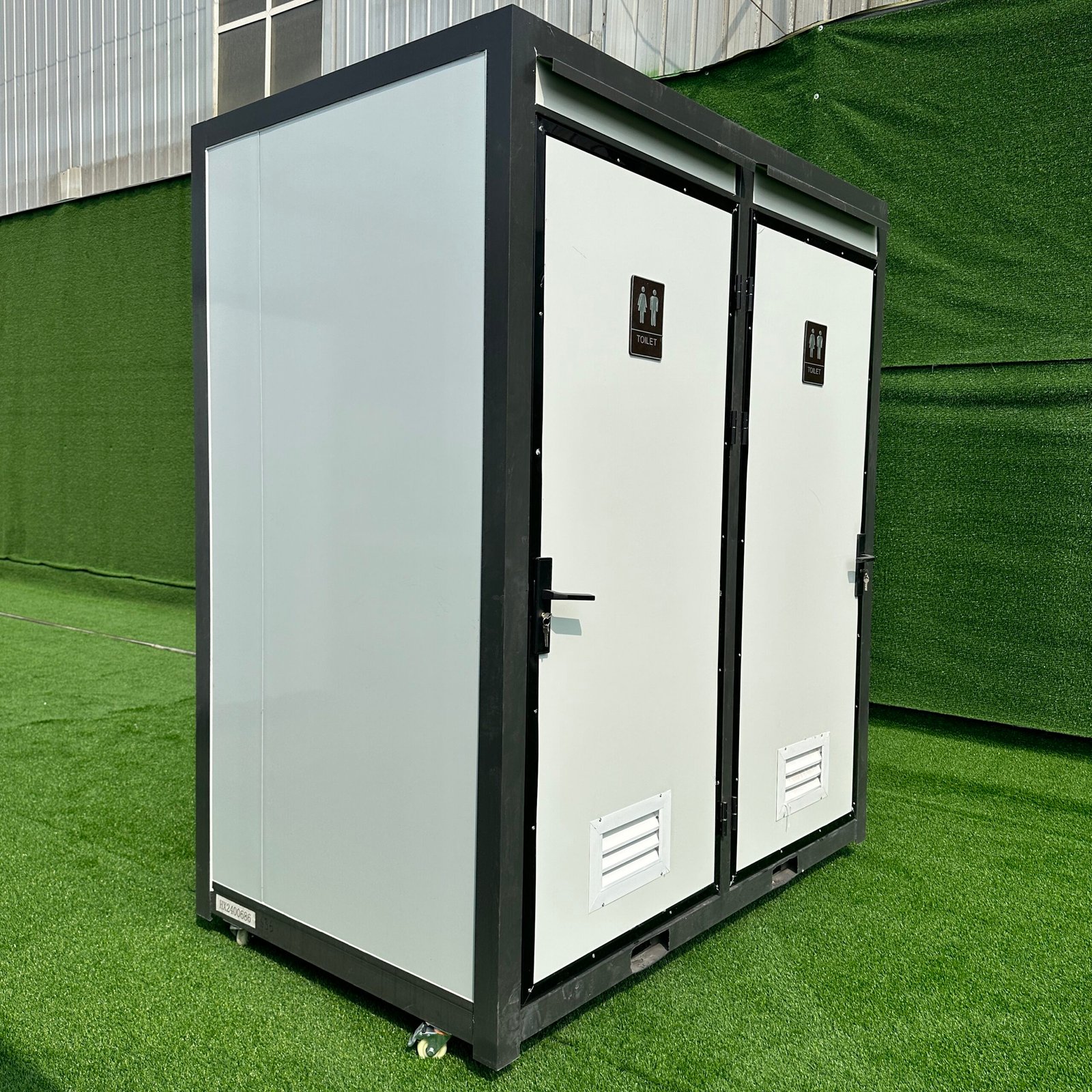

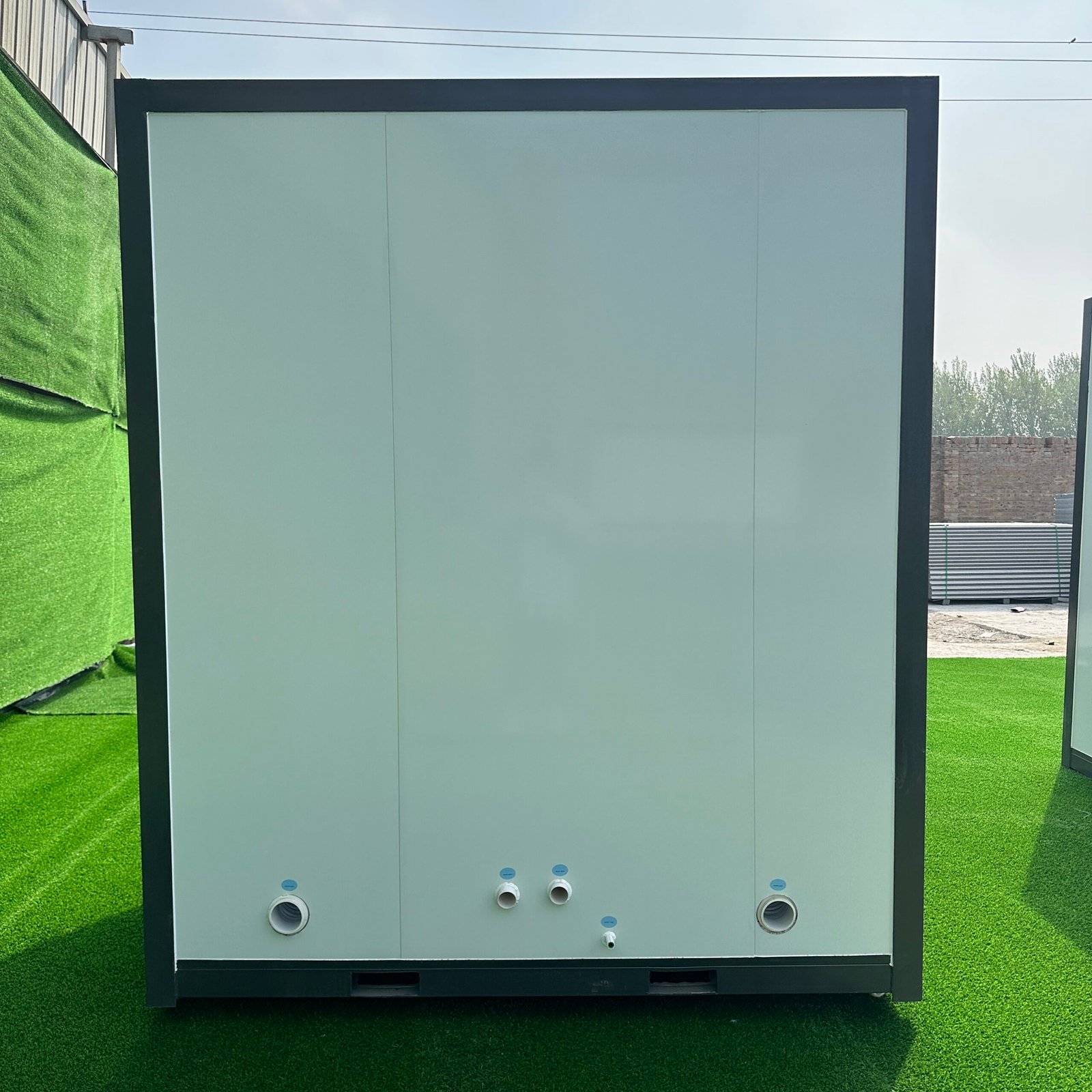

Two-Person Prefabricated Portable Toilet – Sturdy and Eco-Friendly Design

Basic Features

• External Dimensions (mm): 2070 × 1300 × 2400 (40HQ/9 units)
• Internal Dimensions (per unit) (mm): 1190× 990 × 2220
• Weight: Approx. 390kg (+50kg with wooden frame)

Frame Structure

• Columns: 80 × 80 × 5mm Angle Steel (Q235B)
• Top Frame: 40 × 63 × 5mm Angle Steel (Q235B)
• Bottom Frame: 80 × 80 × 2.5mm Square Tube (Q235B)
• Purlins: 40 × 60 × 1.5mm Square Tube (Q235B)
• Forklift Beams: 16# Channel Steel (Q235B)
• Surface Treatment: Electrostatic Spray Coating (Dark Gray)

Wall, Roof, and Flooring

• Wall Panels: Double-sided 0.30mm EPS Composite Panels (Density: 9kg/m³)
• Roof Panels: Same as wall panels
• Flooring: 18mm Magnesium Board + Galvanized Checkered Plate
  • Option: 2.0mm PVC Wood Grain Flooring

Functional System

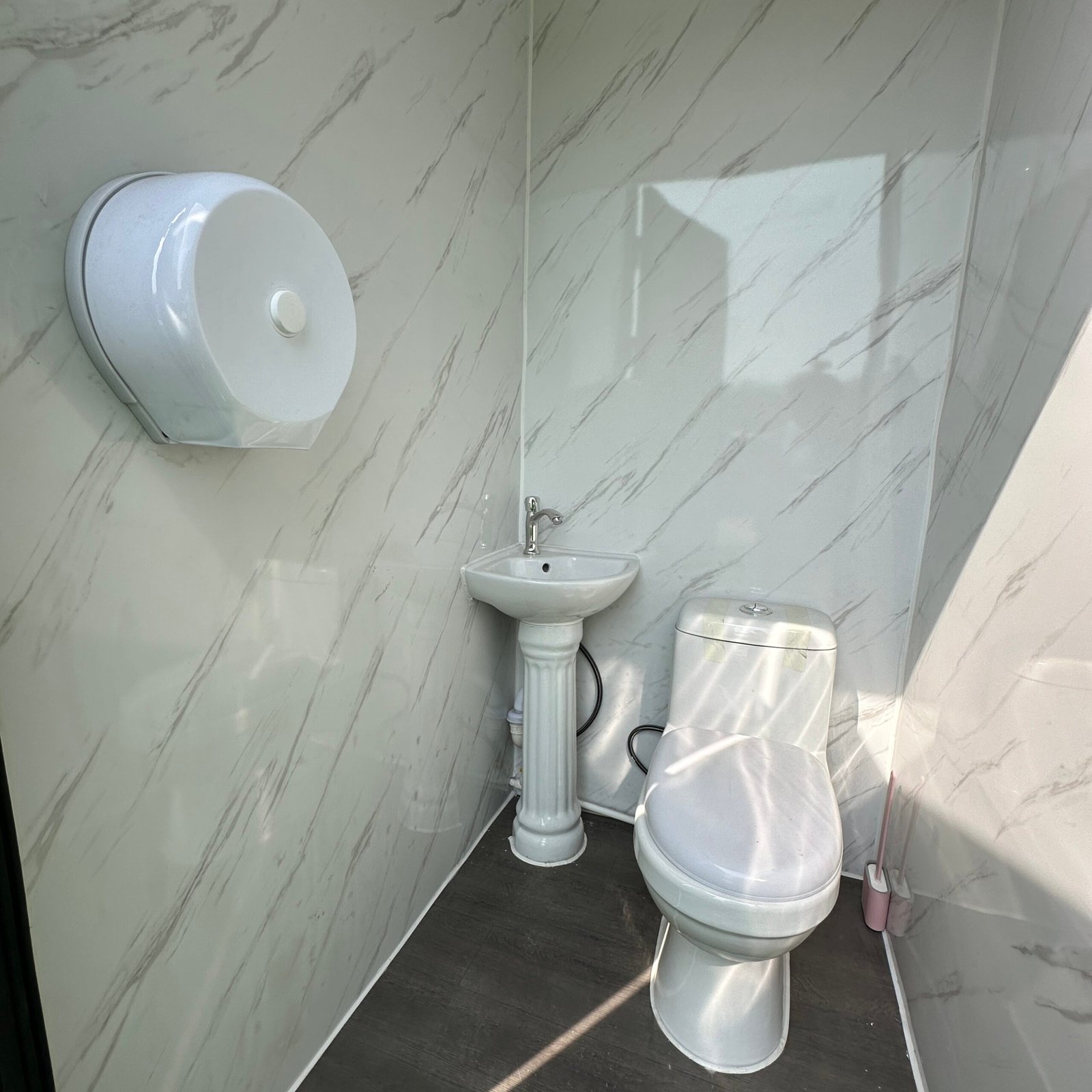

• Toilets: 2 × Rear-Discharge Ceramic Toilets
• Washbasins: 2 × ABS Square Washbasins
• Ventilation: 2 × 4-inch Standard Exhaust Fans
• Lighting & Power: 2 × LED Lights, Power Switches, Six-Hole Sockets
• Accessories: 2 × Toilet Brushes, Acrylic Mirrors, Soap Dispensers, Tissue Holders

Doors & Windows

• Windows: 2 × 300 × 350mm Louvered Ventilation Windows
• Doors: 2 × Stainless Steel Edge Composite Panel Doors, Stainless Steel Locks, High-Manganese Steel Hinges
