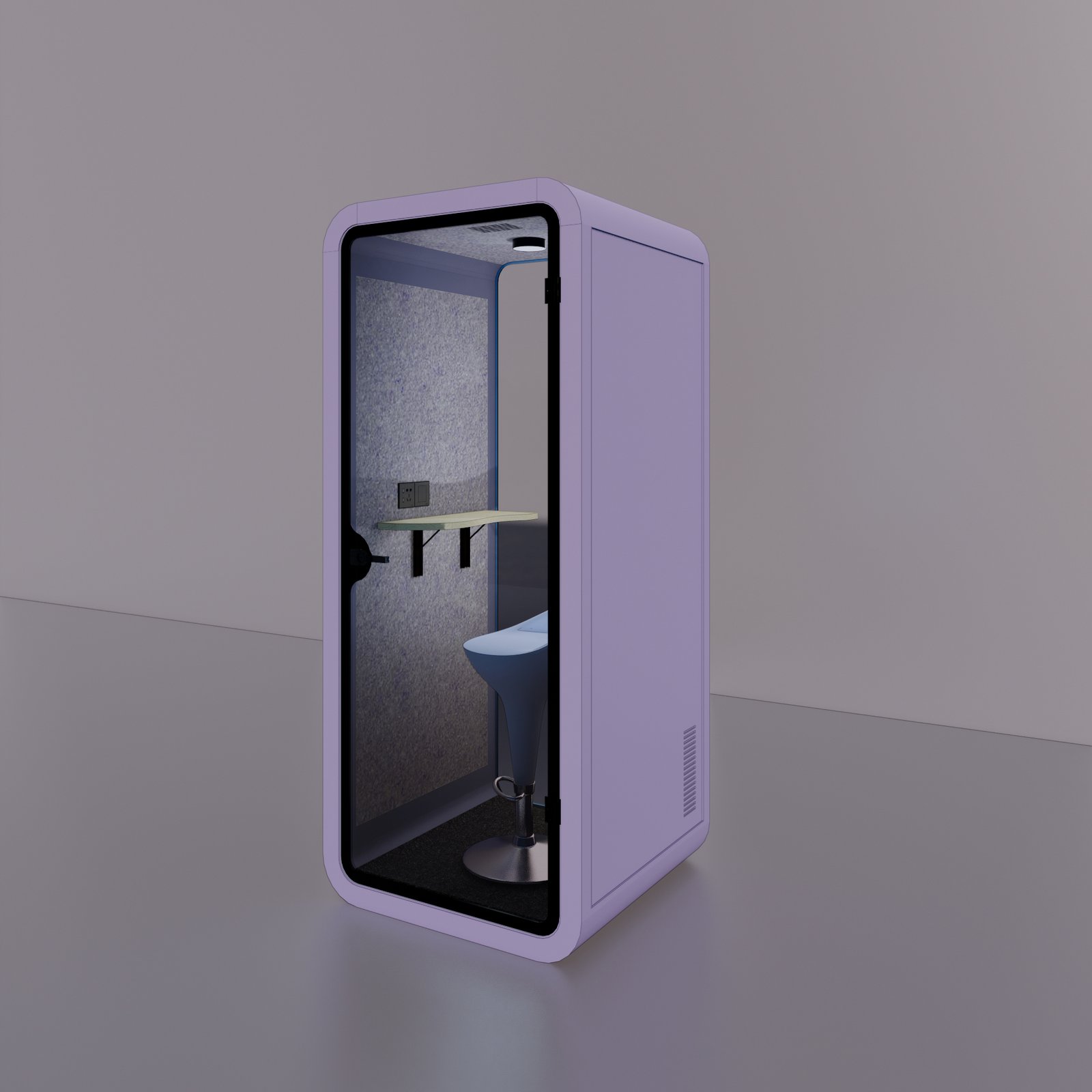

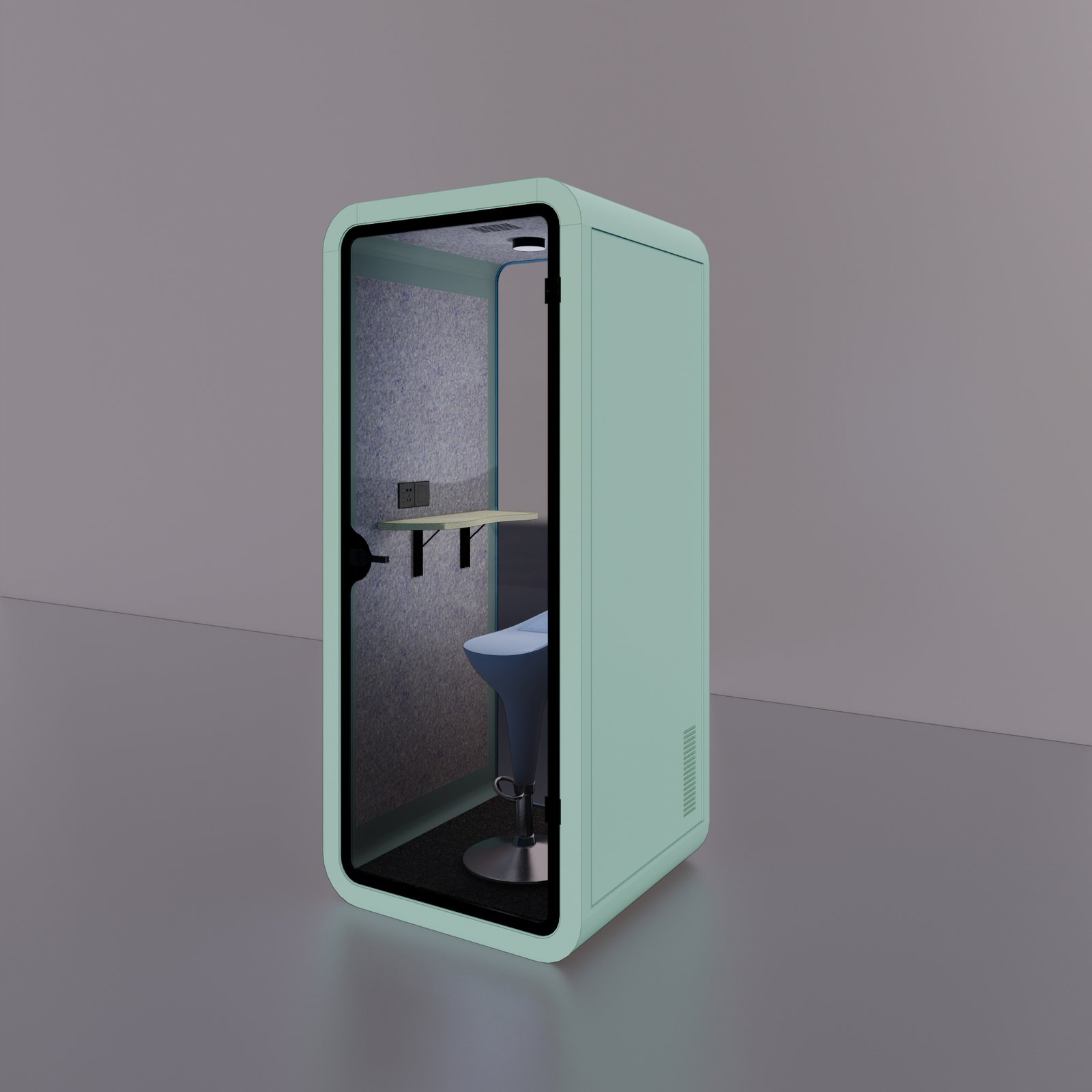

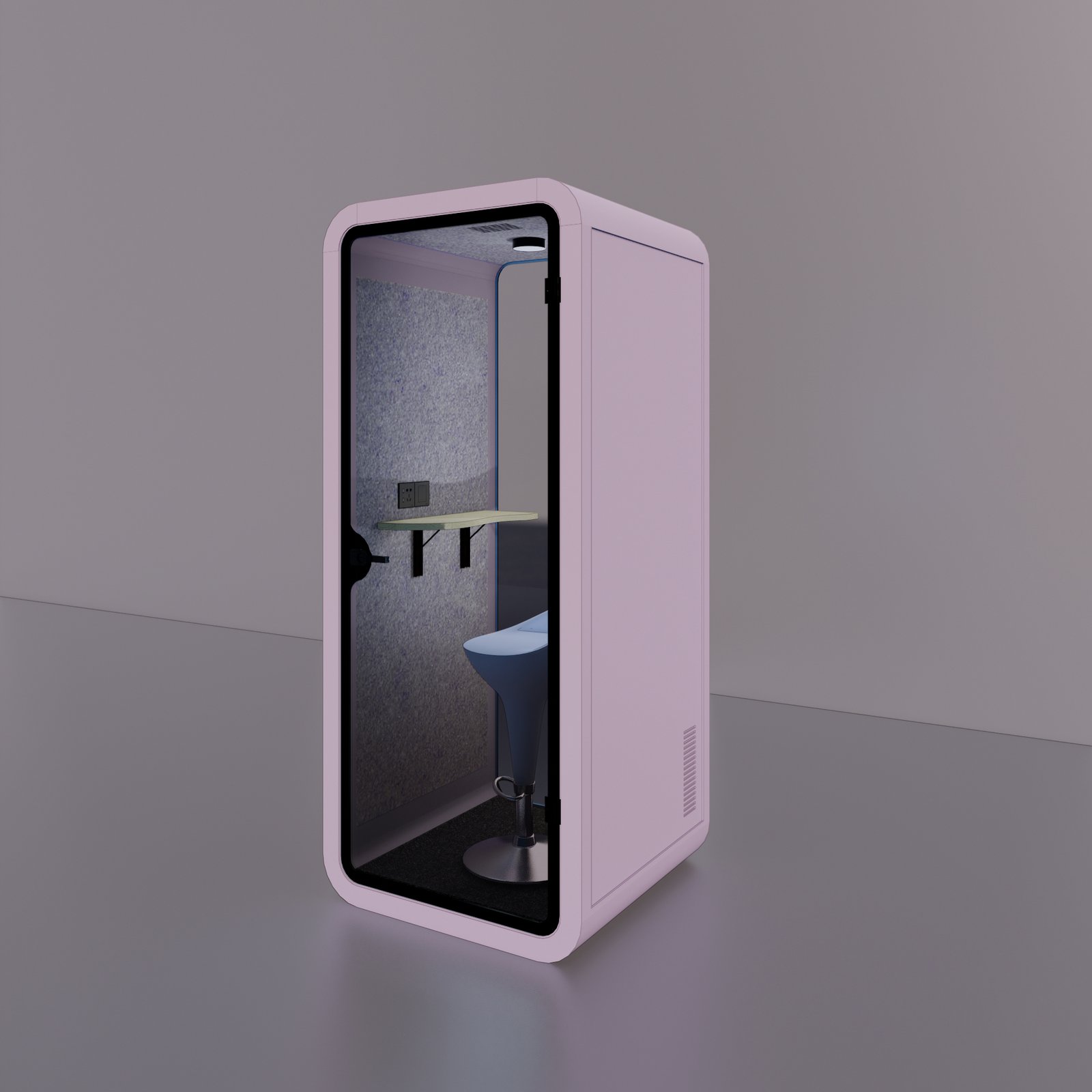

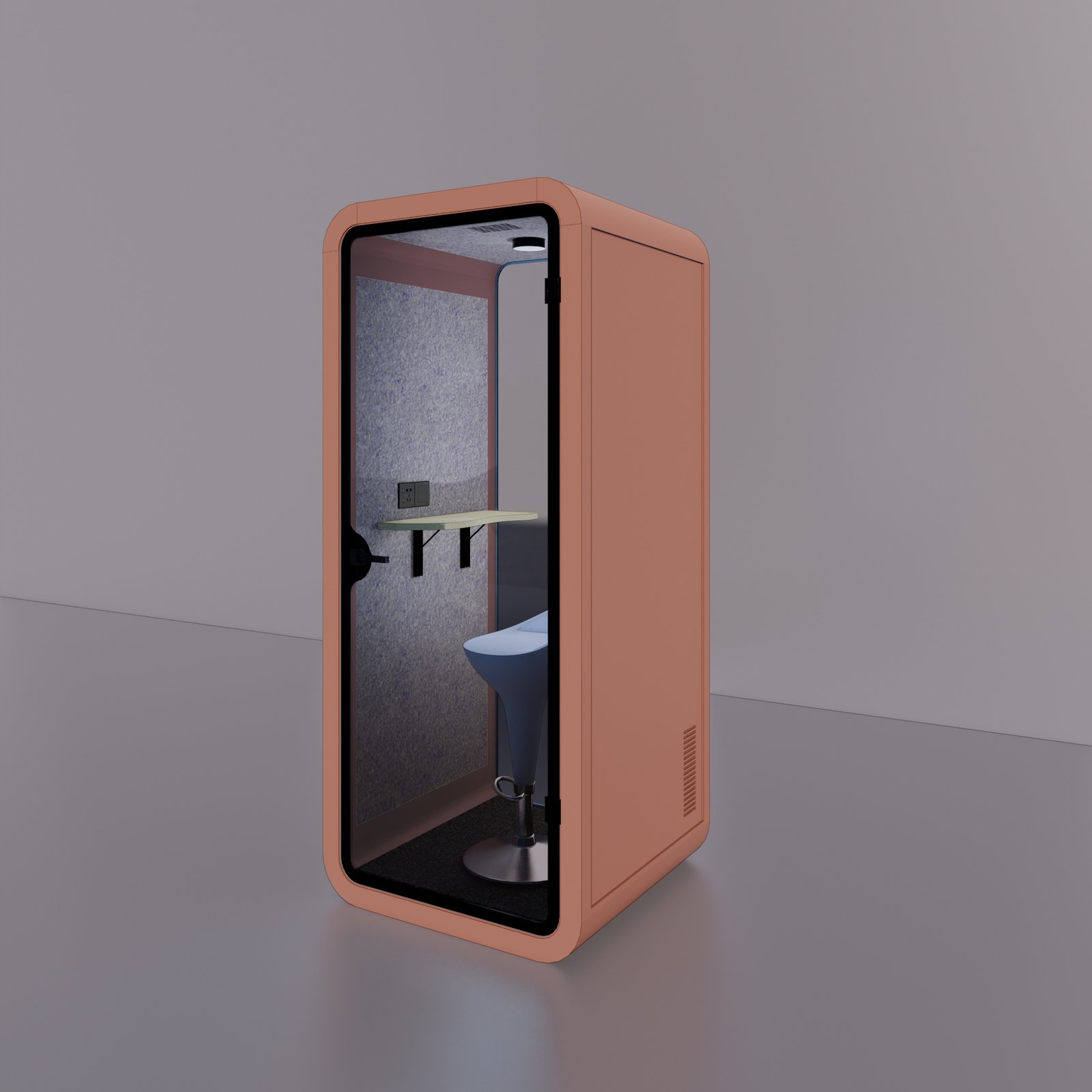

Single-Person Soundproof Office Pod – Ideal for Open Workspaces

Size & Dimensions

  • External Dimensions (mm):W972 × D1010 × H2272
  • Internal Dimensions (mm):W840 × D900 × H2140
  • Packing Size (mm):W2326 × D1026 × H580

Weight

  • Net Weight:252kg
  • Gross Weight:282kg

Interior Furniture (Optional)

  • Wall-Mounted Desk:1 × Compact Work Surface
  • High Stool:1 × Comfortable Seating
Get Quote
Download full catalog

Related products

Explore more

Series 1: Curved Soundproof Booth

S
M
L
XL
ModelExternal Dimensions (mm)Internal Dimensions (mm)Packing Size (mm)Net Weight (kg)Gross Weight (kg)
SW972 × D1010 × H2272W840 × D900 × H2140W2326 × D1026 × H580252282
MW1472 × D1310 × H2272W1340 × D1200 × H2140W2240 × D920 × H970379424
LW2172 × D1610 × H2272W2040 × D1500 × H2140W2240 × D920 × H970534606
XLW2172 × D2210 × H2272W2040 × D2100 × H2140W2240 × D920 × H970613696

Frame & Material

  • Structure: T6061 reinforced aluminum alloy frame with fluorocarbon coating for durability and a premium metallic finish.

  • Glass: 10mm 3C-certified train-grade tempered glass, explosion-proof, flame-resistant, and high transparency (86.9% visible light transmission). Features shock-absorbing edges for enhanced acoustic insulation.

  • Wall Panels: Multi-layered soundproofing with aluminum composite sandwich panels, automotive-grade aluminum foil damping layers, and 12mm eco-friendly polyester fiber acoustic panels for fire resistance and superior noise isolation.

Interior Furniture Options

  • S Model: 1 × Wall-Mounted Desk, 1 × High Stool
  • M Model: 1 × Custom Wall Desk, 2 × High Stools
  • L & XL Models: 1 × Table, 2 × Custom Sofas

Ventilation & Lighting System

  • Ventilation: PD long-path maze-style low-noise fresh air system, designed to minimize sound leakage and refresh the booth air every 2-3 minutes.
  • Lighting: 4000K natural light color temperature adjustable central lighting system for steady and comfortable illumination.

Power & Connectivity

Power Supply: Universal 100-240V / 50-60Hz outlets, 12V-USB charging ports, and pre-wired Ethernet port for seamless connectivity.

Acoustic Performance

  • Sound Insulation: Rw + Ctr 30dB (±5dB)
  • Reverberation Time (RT): 0.25s (+0.1s)

Flooring & Door Lock

  • Flooring: Detachable eco-friendly carpet, with a butyl rubber base, PE fiber woven surface, and ABS raised cushion layer for improved noise absorption.
  • Lock: High-quality silent stainless steel door lock, with a durable alloy body for security and ease of use.

Assembly & Certifications

  • Quick Assembly: Modular quick-installation system, allowing setup in as fast as 2 hours.
  • Certifications: SGS soundproofing certification, ensuring compliance with international acoustic insulation standards.

Series 2: High-End Soundproof Booth

S
M
L
XL
ModelExternal Dimensions (mm)Internal Dimensions (mm)Packing Size (mm)Net Weight (kg)Gross Weight (kg)
SW972 × D1010 × H2272W840 × D900 × H2140W2326 × D1026 × H580305346
MW1472 × D1310 × H2272W1340 × D1200 × H2140W2240 × D920 × H970455 / 499544
LW2172 × D1610 × H2272W2040 × D1500 × H2140W2240 × D920 × H970636 / 591655
XLW2172 × D2210 × H2272W2040 × D2100 × H2140W2240 × D920 × H970710 / 665755

Frame & Material

  • Structure: T6061 reinforced aluminum alloy frame, ultra-thick (6mm-12mm) for maximum durability and stability.
  • Glass: 10mm 3C-certified train-grade tempered glass, explosion-proof, flame-resistant, and high transparency (86.9% visible light transmission). Features shock-absorbing edges for enhanced acoustic insulation.
  • Wall Panels: 38mm aluminum composite sandwich panels with a moisture-resistant acoustic surface and fluorocarbon spray coating, ensuring fireproof, rust-free, and high-performance noise reduction.

Interior Furniture Options

  • S Model: 1 × Wall-Mounted Desk, 1 × High Stool
  • M Model: 1 × Custom Wall Desk, 2 × High Stools
  • L & XL Models: 1 × Table, 2 × Custom Sofas

Ventilation & Lighting System

  • Ventilation: PD long-path maze-style low-noise fresh air system, designed to minimize sound leakage while refreshing booth air every 2-3 minutes.
    • Fan Specifications: 12V, 1.5A, 18W, 1500RPM, 170CFM airflow.
  • Lighting: 4000K adjustable central LED lighting system, providing stable and comfortable illumination.

Power & Connectivity

Power Supply: Universal 100-240V / 50-60Hz outlets, 12V-USB charging ports, and pre-wired Ethernet port for seamless connectivity.

Acoustic Performance

  • Sound Insulation: Rw + Ctr 30dB (±5dB)
  • Reverberation Time (RT): 0.25s (+0.1s)

Flooring & Door Lock

  • Flooring: Detachable eco-friendly carpet, with a butyl rubber base, PE fiber woven surface, and ABS raised cushion layer for enhanced noise absorption.
  • Lock: High-quality silent stainless steel door lock, with a durable alloy body for security and ease of use.

Assembly & Certifications

  • Quick Assembly: Modular quick-installation system, allowing setup in as fast as 2 hours, with multiple assembly/disassembly cycles without deformation.
  • Air Quality: Meets indoor environmental pollution control standards for formaldehyde-free, chemical-free air safety.
  • Certifications: SGS soundproofing certification, ensuring compliance with international acoustic insulation standards.
