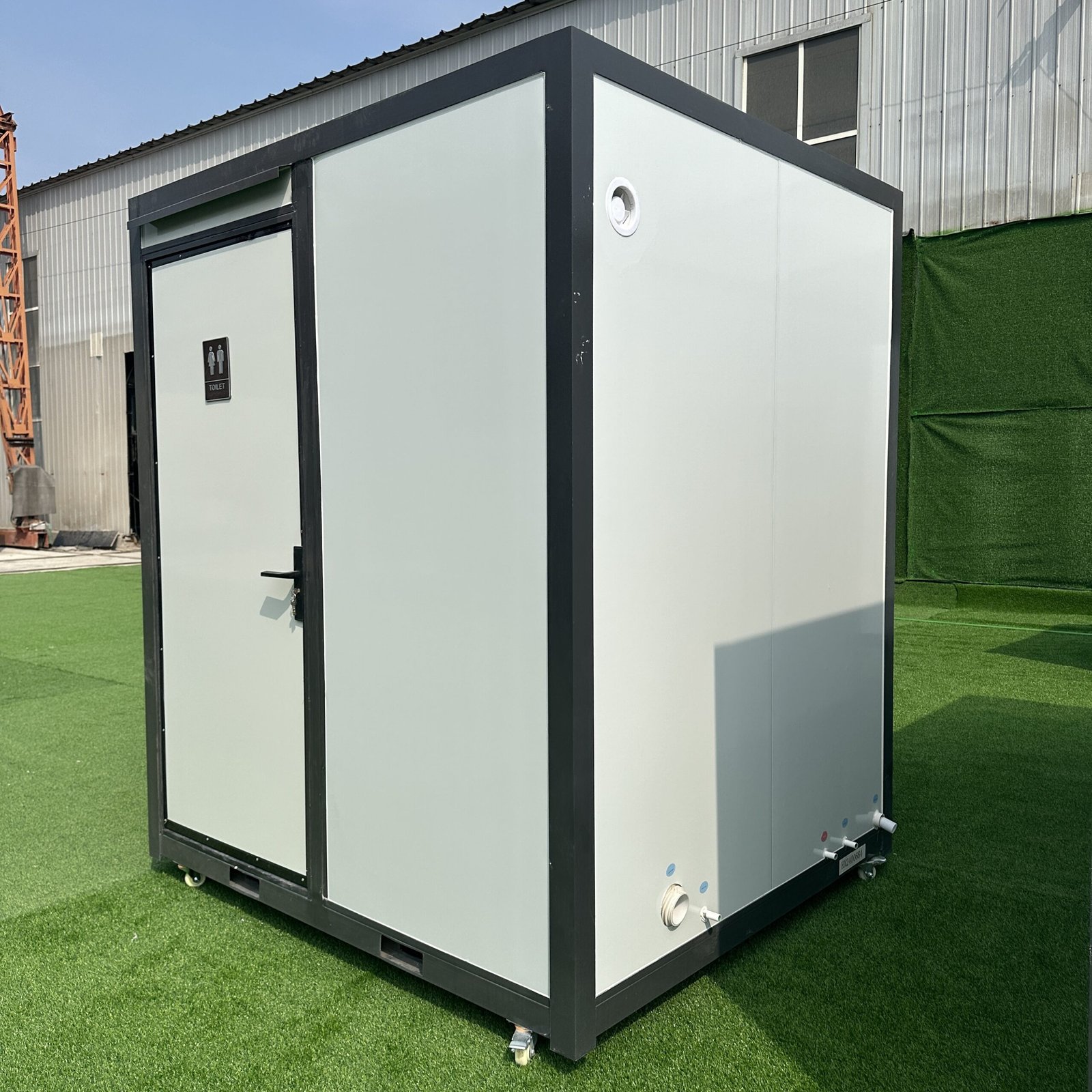

Prefabricated Mobile Shower & Toilet – Efficient, Clean, and Convenient

Basic Features

• External Dimensions (mm): 2070 × 1840 × 2400 (40HQ/6 units)
• Internal Dimensions (mm): 1970 × 1740 × 2220
• Weight: Approx. 518kg (+60kg with wooden crate)

Frame Structure

• Columns: 80 × 80 × 5mm Angle Steel (Q235B)
• Top Frame: 63 × 40 × 5mm Angle Steel (Q235B)
• Bottom Frame: 80 × 80 × 2.0mm Square Tube (Q235B)
• Purlins: 40 × 60 × 1.5mm Square Tube (Q235B)
• Forklift Beams: 16# Channel Steel (Q235B)
• Surface Treatment: Electrostatic Spray Coating (Gray)

Wall, Roof, and Flooring

• Wall Panels: Double-sided 0.30mm EPS Composite Panels (Density: 9kg/m³)
• Roof Panels: Same as wall panels
• Flooring: 18mm Magnesium Board + 2.0mm PVC Wood Grain Flooring

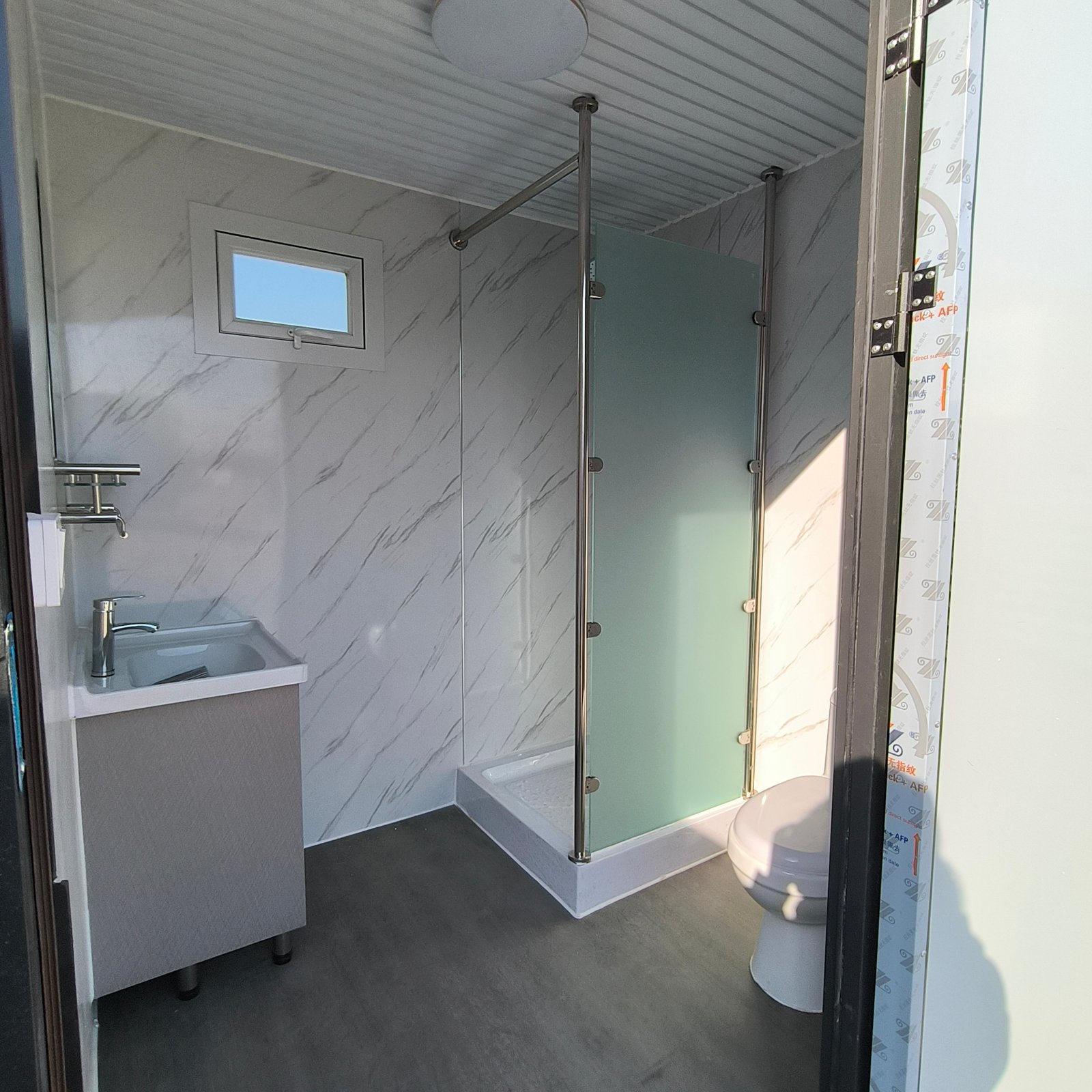

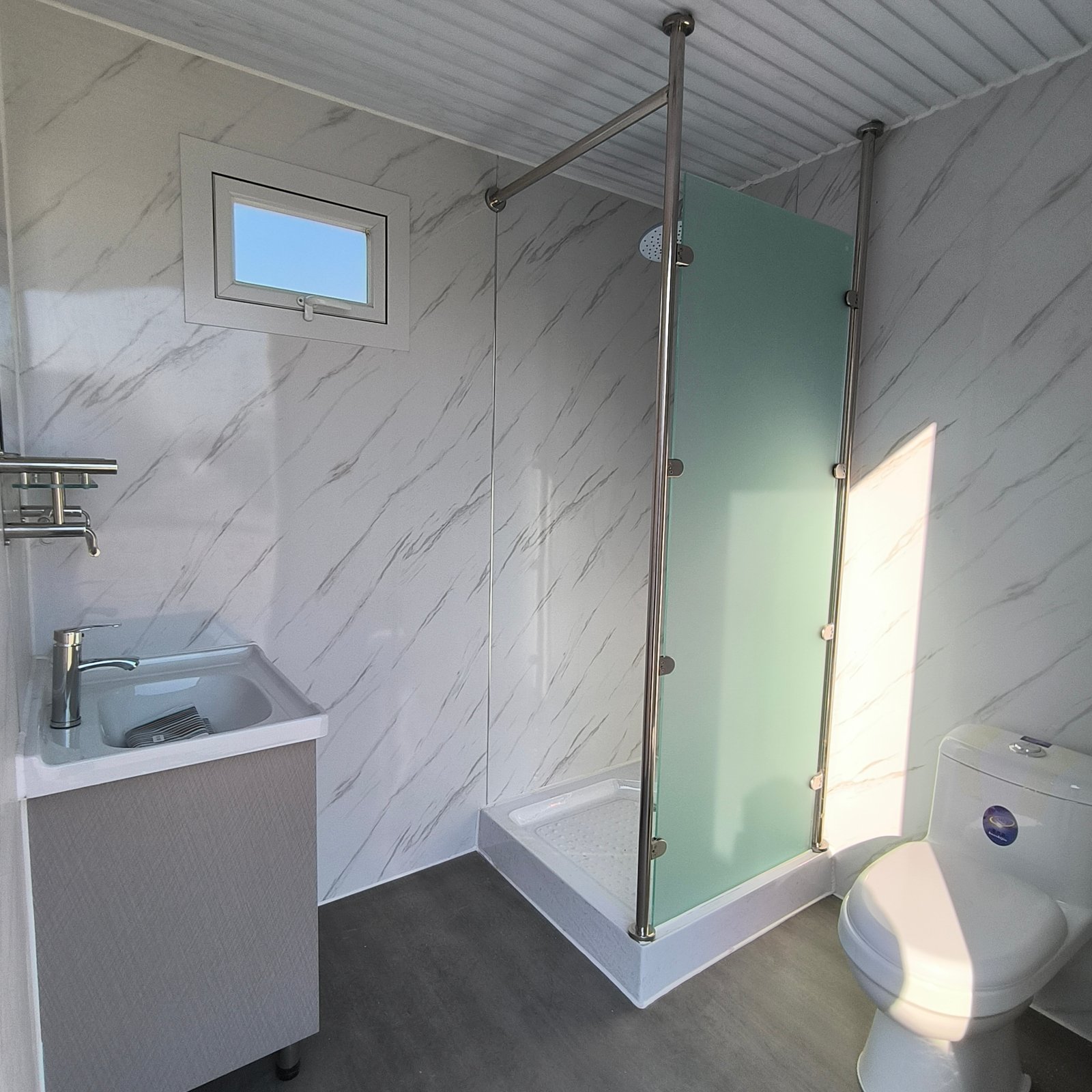

Functional System

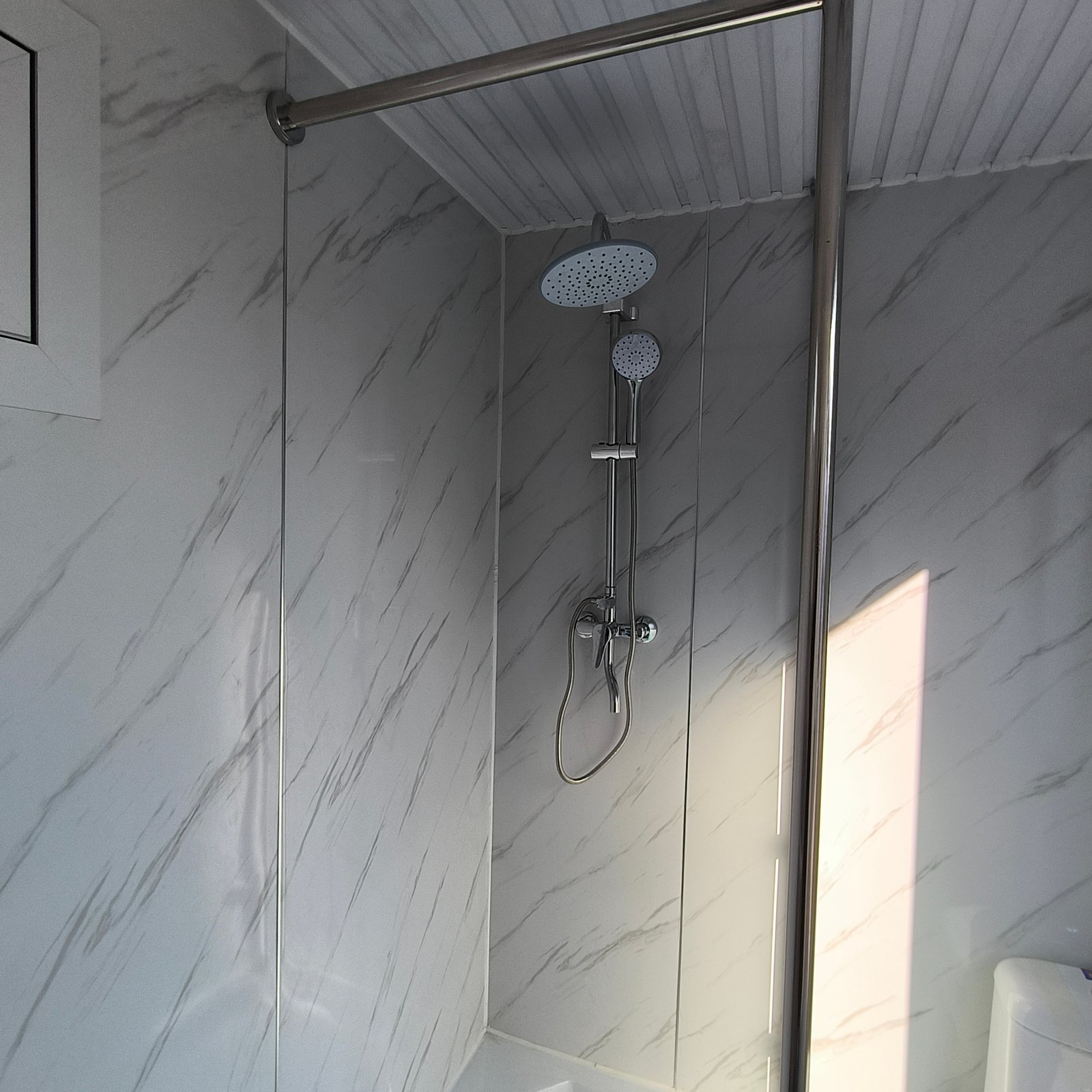

• Shower System: 1 × Standard Showerhead

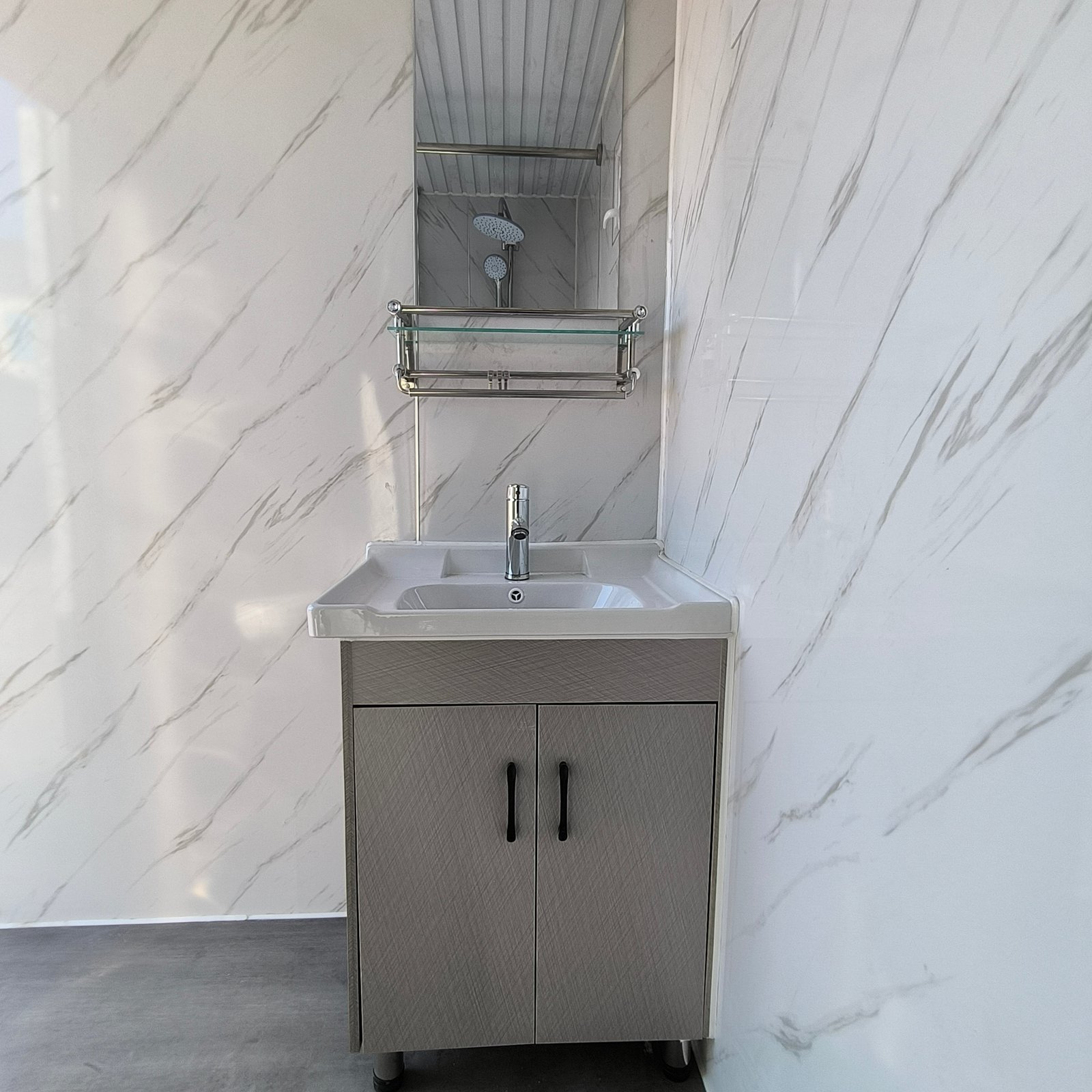

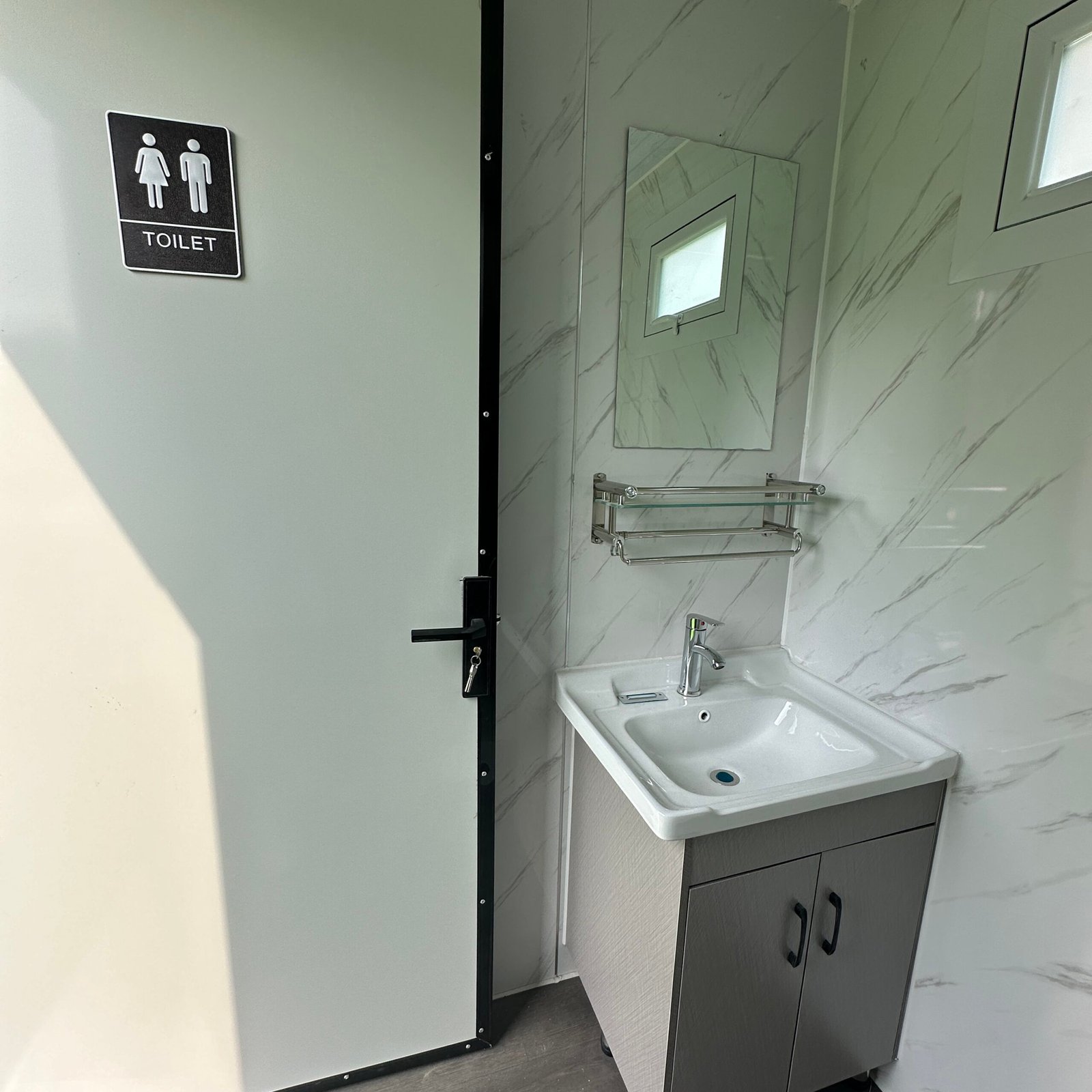

• Wash Basin: 1 × Ceramic Cabinet Basin
• Mirror: 1 × Wall-Mounted Mirror
• Storage & Accessories: 1 × Shelf, 2 × Hooks

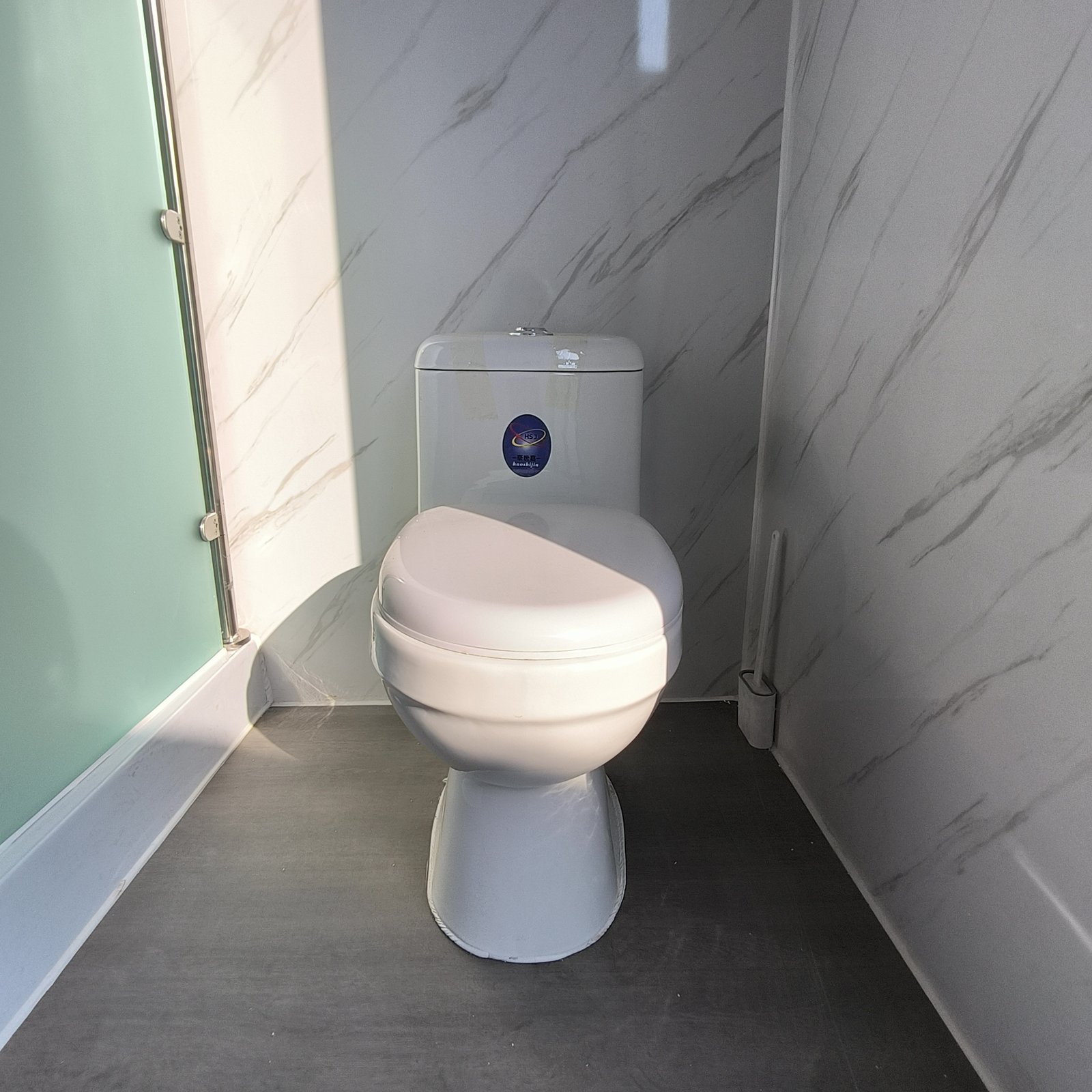

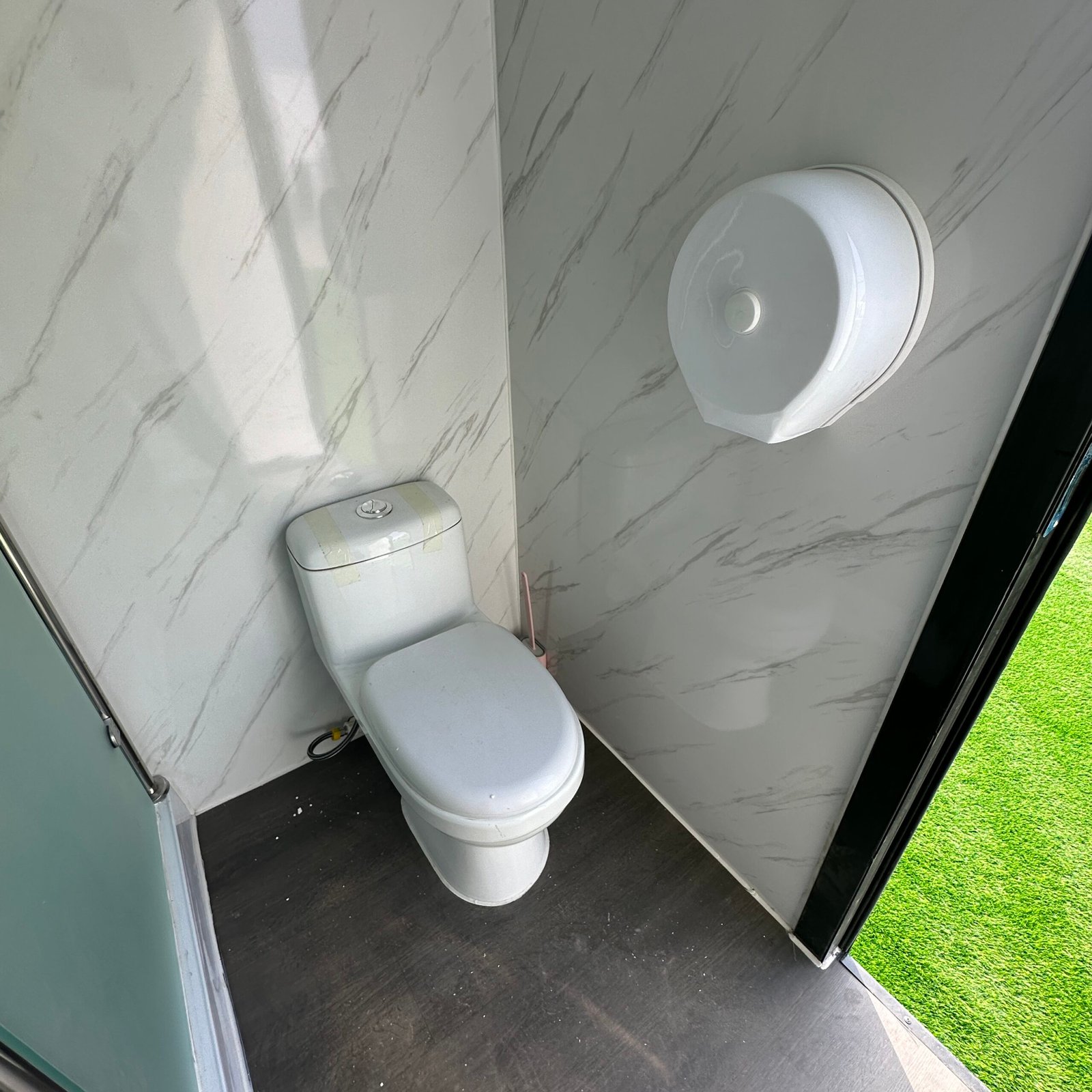

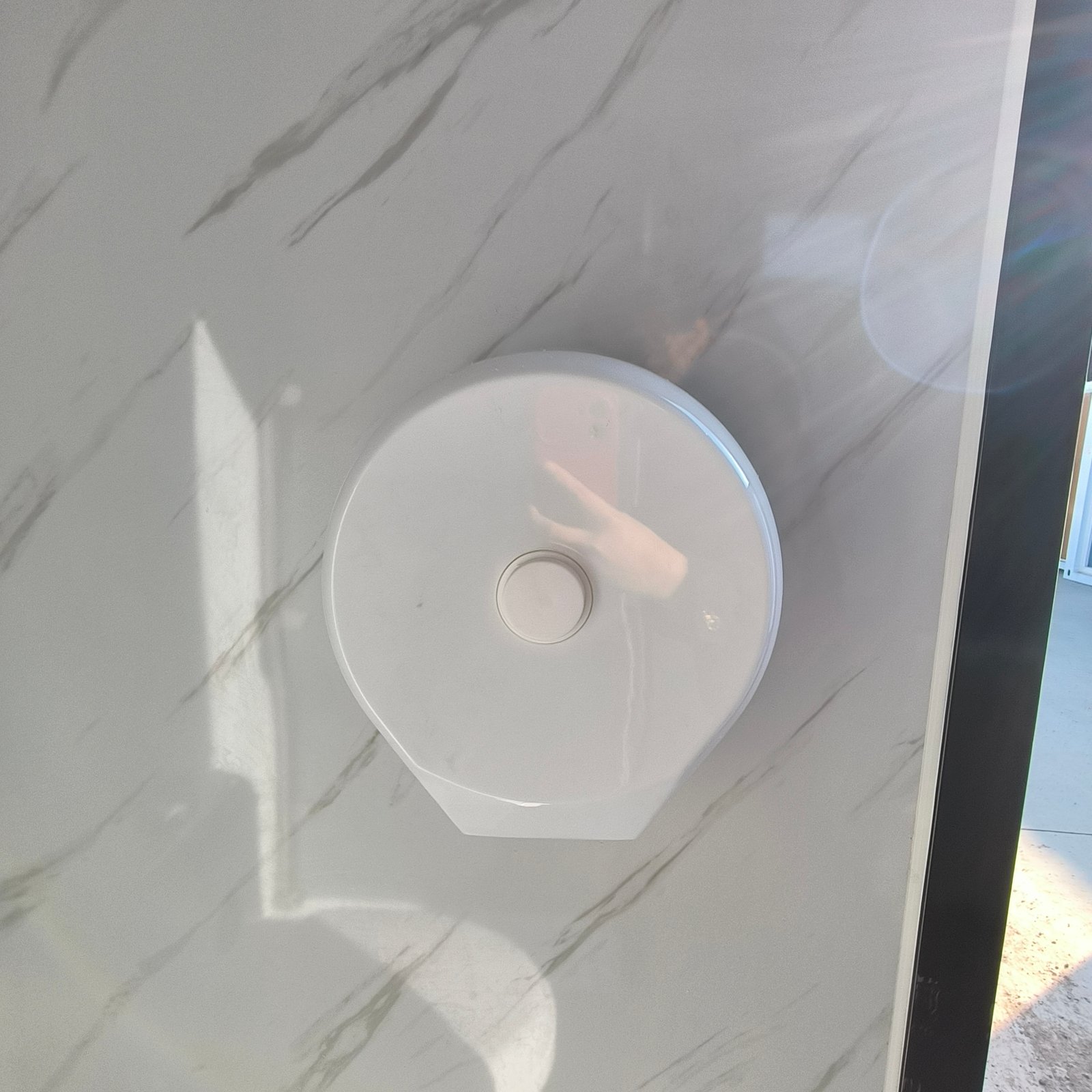

• Toilet System: 1 × Ceramic Toilet, 1 × Toilet Brush, 1 × Tissue Holder
• Ventilation & Lighting: 1 × Exhaust Fan, 1 × LED Light with Switch

Doors & Windows

• Window: 1 × 400 × 600mm Thermal Break Aluminum Ventilation Window
• Door: 1 × Stainless Steel Edge Composite Panel Door
