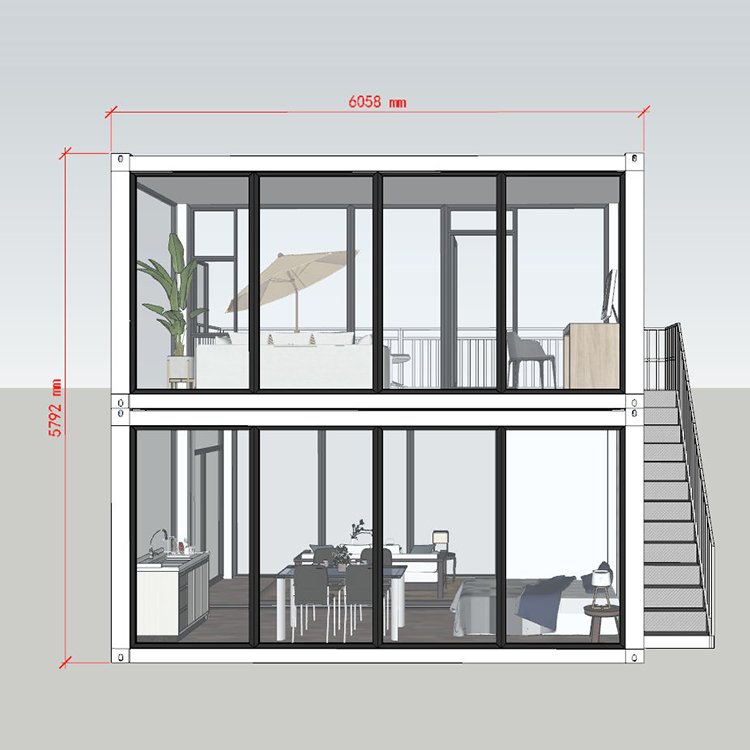

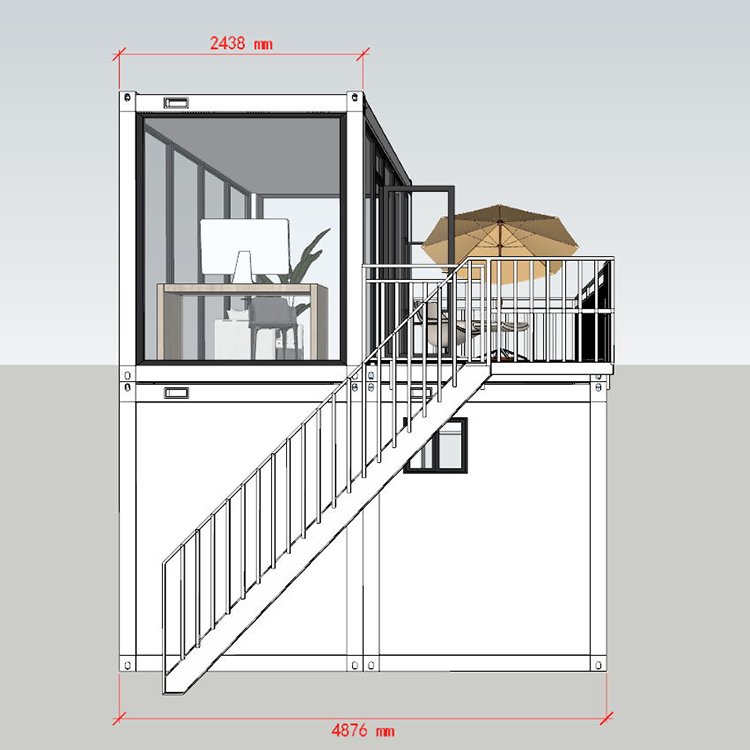

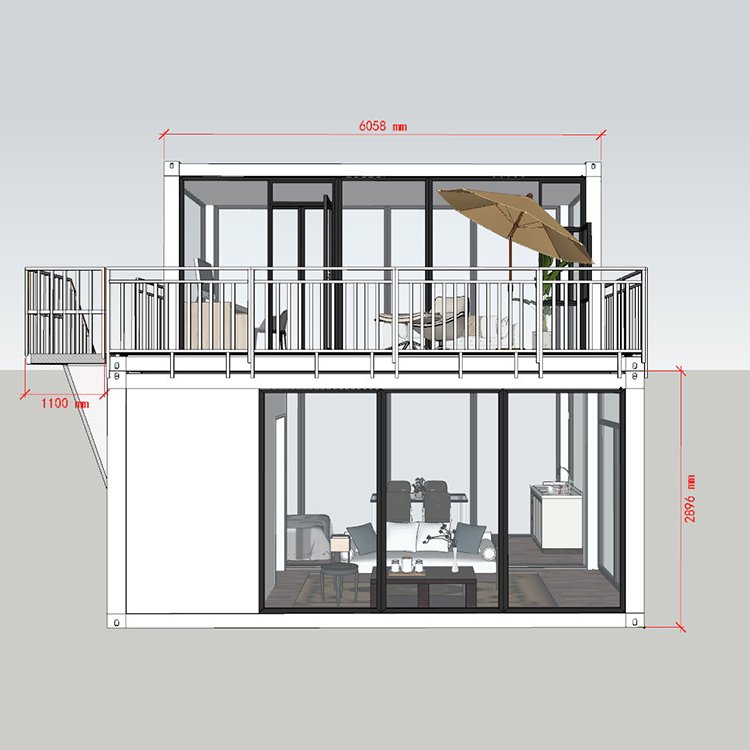

External Dimensions:
Internal Dimensions:
Additional Components:
Frame Structure
Top Frame: 2.3mm Q235 steel, welded, rust removal, electrostatic powder spraying, galvanized
Bottom Frame: 2.3mm Q235 steel, welded, rust removal, electrostatic powder spraying, galvanized
Columns: 2.3mm Q235 steel, welded, rust removal, electrostatic powder spraying, galvanized
Lift Corner Pieces: 3.5mm Q235 standard parts, galvanized
Roofing System
Outer Steel Sheet: 0.4mm Color Steel Sheet
Insulation Layer: 75mm fiber glass wool with silver paper, density: 14kg/m³, Grade A fire-proof
Ceiling Board: V-831 type, 0.4mm Integrated Color Steel Sheet
Wall System
Wall Panels: 75mm Rock Wool Board (0.326/0.326mm), density = 80kg/m³, Grade A Fire-proof & Non-flammable
Floor System
Fiber Cement Board: 18mm thick Fiber Cement Board
Interior Flooring: 1.6mm thickness plastic board
Windows & Doors
Windows (2 Sets): 930mm × 1130mm, PVC sliding window with security bar and flyscreen
Door (1 Set): 840mm × 2035mm security door with lock, dark grey color
Electrical System
Sockets (3 Pcs): Five sockets (1pc AC socket, 4pcs general sockets)
Lighting (2 Pcs): 2pcs LED lights, 2*15W
Electric Cable (31m):
Main power cable: 6 mm²
AC cable: 4 mm²
Socket cable: 4 mm²
Lighting & switch cable: 2.5 mm²
Switch (1 Pc): Single Switch
Distribution Box (1 Pc): CEE industrial plug, socket voltage 220V-250V, 2P32A, fixed in explosion-proof box at the top beam of the short side, IP44 standard
Additional Accessories
Rainspout (4 Pcs): Φ50PVC
Accessories (1 Set): Self-tapping screws, glue, edge covers, galvanized hexagon bolts
