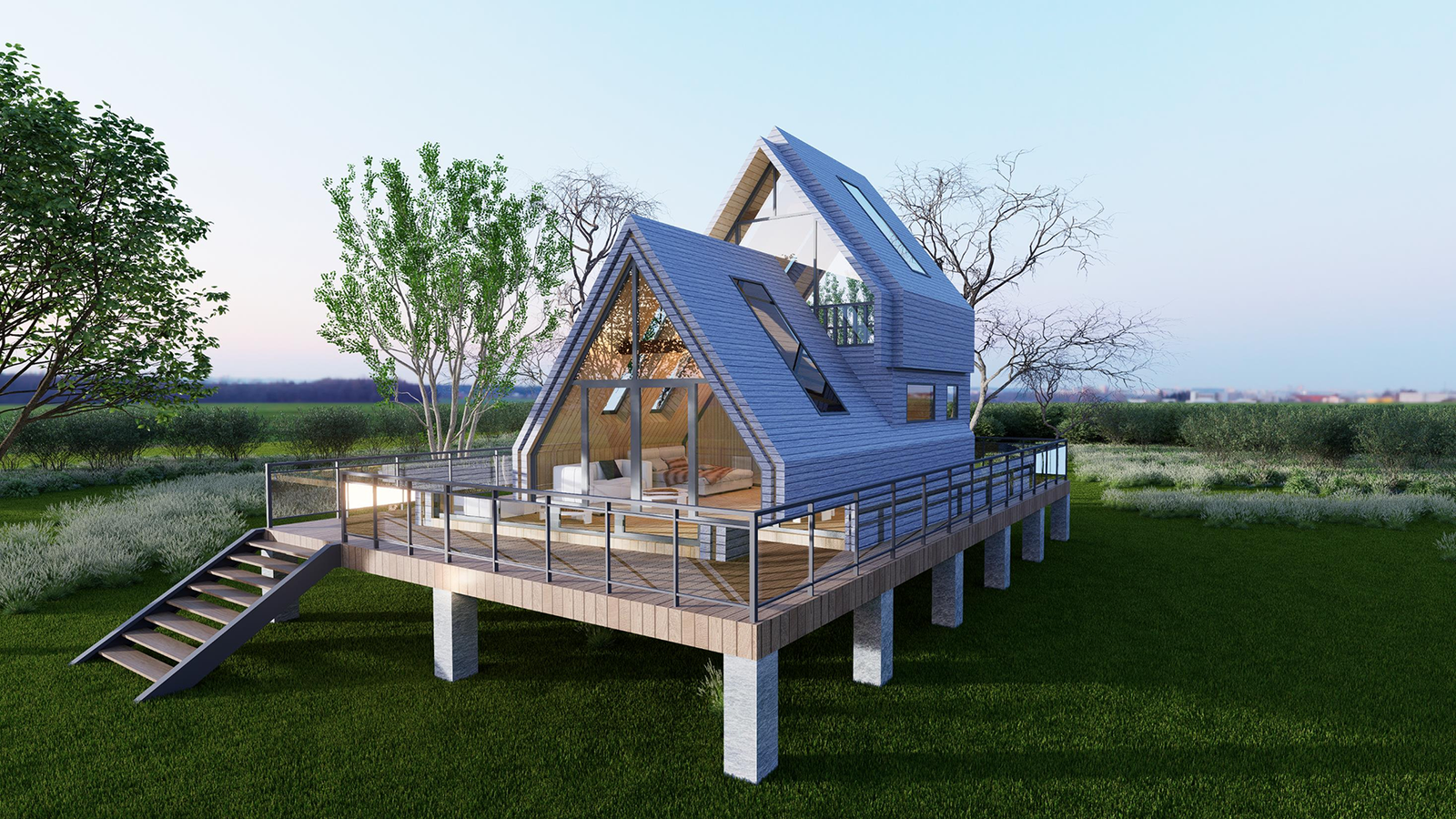

54㎡ Two-Story Prefab A-Frame Cabin – Spacious, Durable, and Easy to Assemble

Spacious Layout – 54㎡ indoor area, 45㎡ footprint, efficient two-story design
Sturdy Frame – Steel-wood hybrid structure with galvanized steel
Two-Story Living – Maximized space with functional upper level
Weatherproof – Aluminum alloy roof & self-adhesive waterproof membrane
Superior Insulation – 80mm glass wool, formaldehyde-free
Premium Flooring – Wood-grain tiles or wooden flooring
Durable Walls – 12mm cement fiber board, OSB + bamboo fiber interior
Fire-Resistant – 0.39mm breathable fireproof membrane
Quick Installation – Fast assembly, cost-effective
Eco-Friendly – Sustainable materials for a greener home

Indoor Area	Footprint	Dimensions (LWH)	Layout
29㎡	29㎡	6m x 3m x 5m	1 Bedroom, 1 Bathroom
38㎡	38㎡	6.3m x 4.5m x 5.25m	1 Bedroom, 1 Bathroom
54.8㎡	45㎡	6m x 3m x 6m	2 Bedrooms, 1 Bathroom, 1 Living Room
68㎡	54㎡	6m x 3m x 6m	2 Bedrooms, 1 Bathroom, 1 Living Room

Main Frame System: Steel-wood hybrid structure, galvanized square steel, light steel keel
Main Connection System: Light steel keel accessories, anti-pull parts, flat connectors, wind-resistant tie bars, right-angle connectors
Roof & Waterproofing: Aluminum alloy decorative panels, aluminum alloy edge sealing, self-adhesive asphalt waterproof membrane
Floor Structure Board: OSB unidirectional particleboard (1220*2440*18mm)
Full House Insulation: 80mm single-sided glass wool insulation (24kg, formaldehyde-free)
Interior Flooring: 600*600 wood-grain tiles or wooden flooring with skirting boards
Bathroom Flooring: 300*300mm, 300*600mm light-colored anti-slip tiles
Interior Wall Finishing: 9mm OSB + bamboo fiber board
Exterior Wall Material: 12mm thick cement fiber board
Sound & Thermal Insulation: OSB unidirectional particleboard (Exterior: 9mm, Interior: 8mm)
Fire Resistance: 0.39mm breathable fire-resistant membrane
