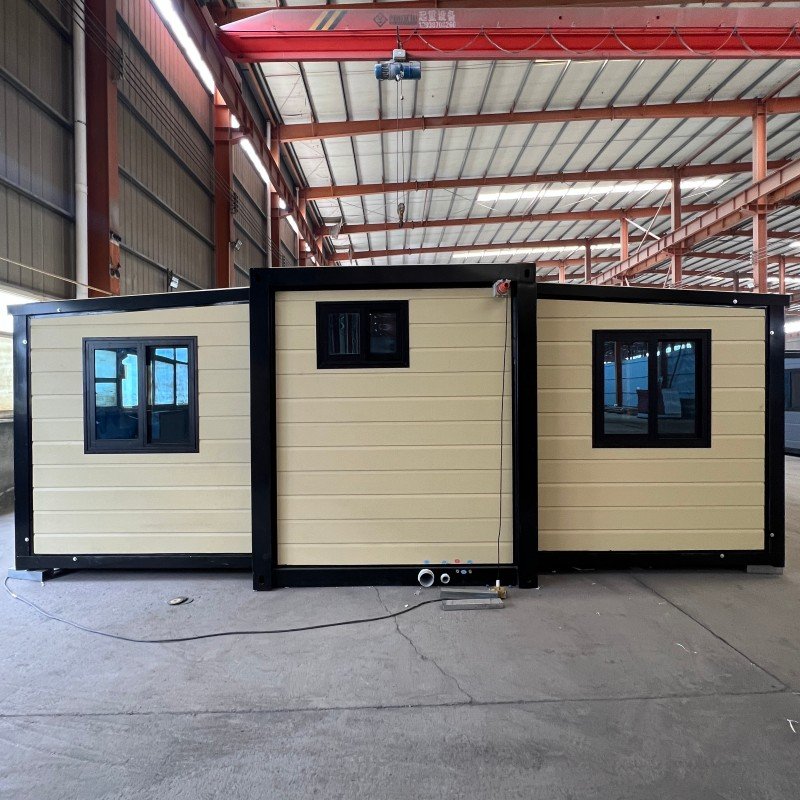

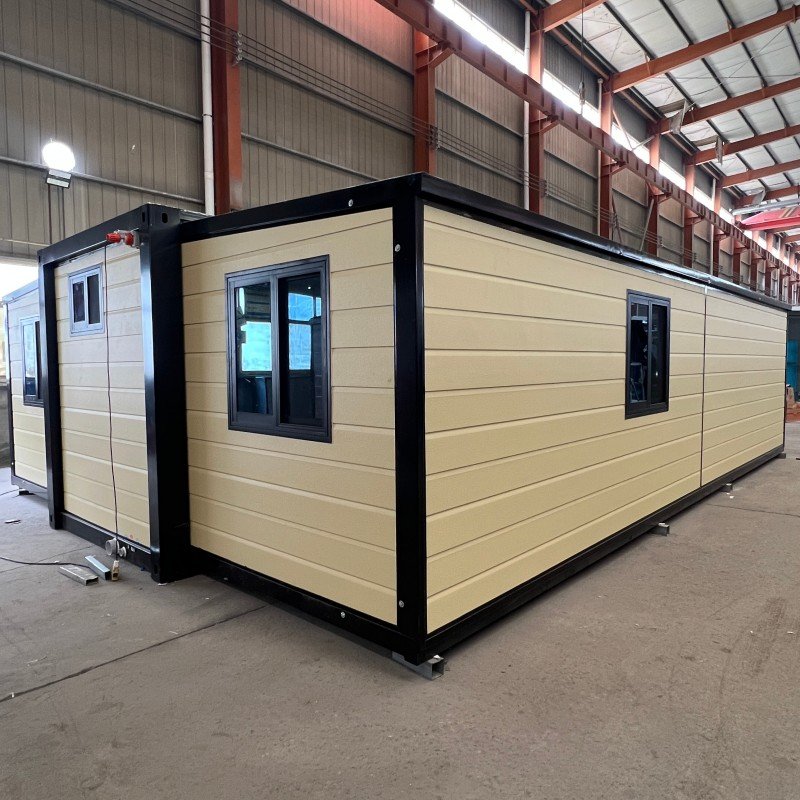

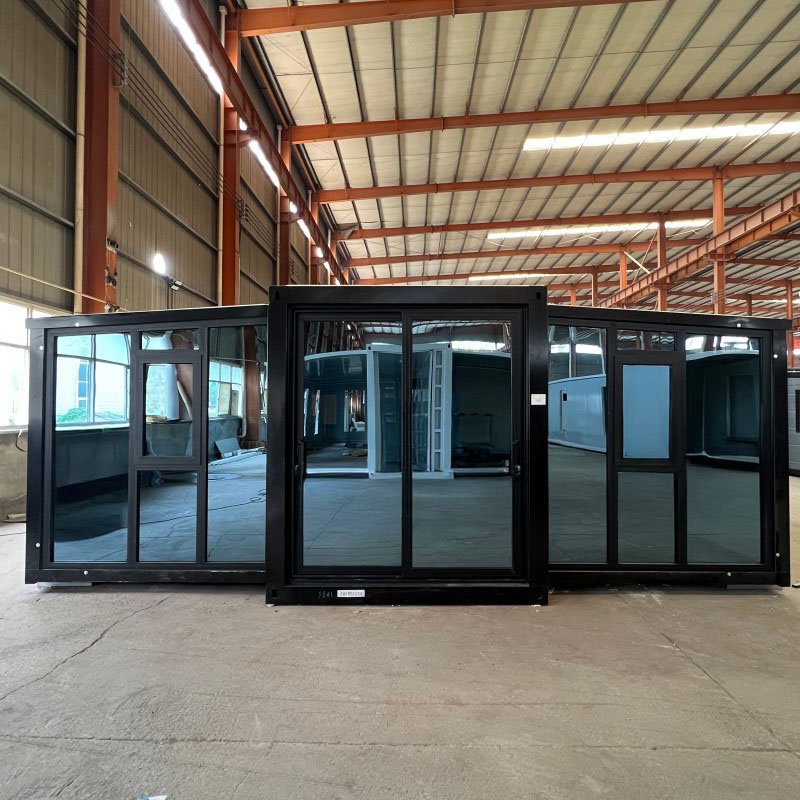

30FT Expandable Container House – Spacious and Flexible Living Solution

The 30FT Expandable Container House offers a spacious, flexible living solution. With its quick installation and durable build, it’s ideal for temporary housing, portable accommodations, or as a mobile workspace.

Specifications

  • External dimensions (mm): L9000*W6300*H2480
  • Internal dimensions (mm): L8740*W6140*H2200

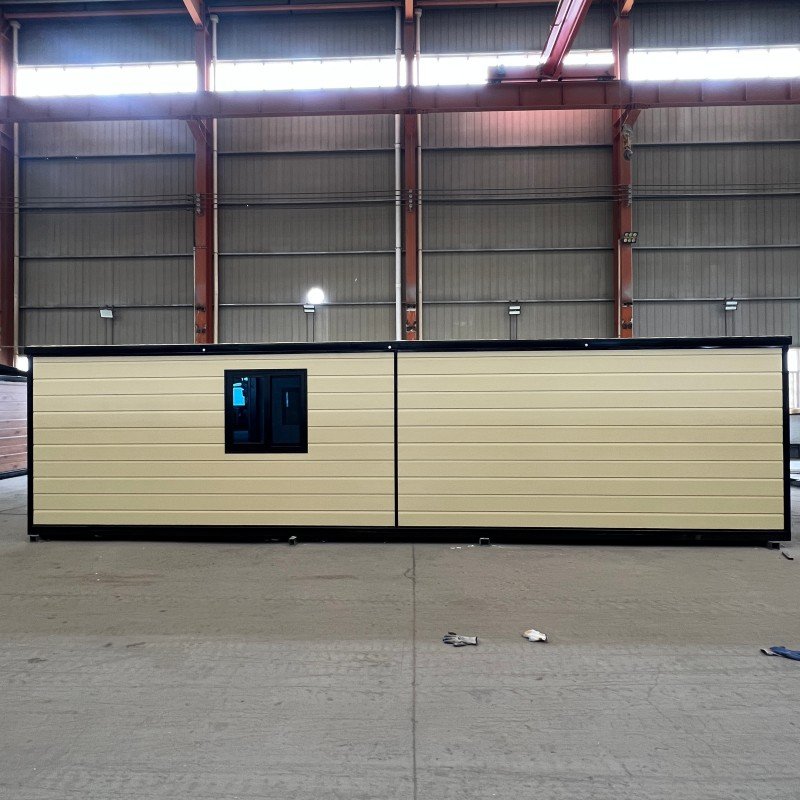

  • Folded state (mm): L9000*W2200*H2480
  • Total Area (㎡):54
  • Total weight (kg):4300-6000

Technical parameters for 30FT expandable house

Basic InformationExpanded Size(mm)L*W*HL9000*W6300*H2480
Intermal Size(mm)L*W*HL8740*W6140*H2200
Folded Size(mm)L*W*HL9000*W2200*H2480
Total Floor Area(m²)54
Total weight (kg)4300-6000
Loading Quantity1 Sets/40HQ
FrameworkTop BeamGalvanized square tube 80*100*2.5mm Q235
Main ColumnGalvanized folding part 150*210*2.0mm Q235
SubframeGalvanized square tube 40*60*1.5mm Q235
Corner FittingGalvanized steel 210*150*160*4mm Q235
HingeGavanized thickened hinges Q235
FloorFloor of the Middle Room18mm cement floor + 2mm PVC leather floor
Floor of Side Room18mm bamboo plywood floor + 2mm PVC leather floor
Thermal Insulation MaterialSide Wall75mm sandwich panel, 0.35mm double-sided colored steel panel.
(optional thermal insulation materials: rock wall, EPS and PU).
The common sandwich material is EPS, unit weight. 12kg/m³
Partition Wall50mm sandwich panel, 0.35mm double-sided colored steel panel,
same thermal insulation material as above.
Roof50mm sandwich panel 0.35mm double-sided colored steel panel,
same thermal insulation material as above.
Electrical SystemParameter1.Can be customized, our standard wire is GB wire:incoming wire 6mm²,
air-conditioner socket 4mm², socket 2.5mm2,light 1.5mm²
2.Circuit breaker system: main switch 2P63A*1pc, leakage protector
2P43AV2P32A/1P20 1pc each.
3.Light: LED tri-proof ceiling light*6pcs
4.Socket general three-hole socket, can be customized.
Door and Window SystemEntry DoorSteel security door (optional materials: broken bridge aluminum itanium magnesium alloy, and aluminum alloy).
WindowPVC double glass casement window(optional materials: broken bridge uminum and aluminum alloy). Common size: 930*930mm*6pcs,and 500*500mm*1pc

30ft expandable house layout

Customization options

To Australian clients may concern :

We Xiamen Umd Industrial Co., Ltd. hereby declare that the goods exported to AustraliaDO NOT contain asbestos HAVE NOT been exposed to asbestos in their manufacture.

EPS wall panels and floors Asbestos Free
CE certificate

How to install an expandable house
