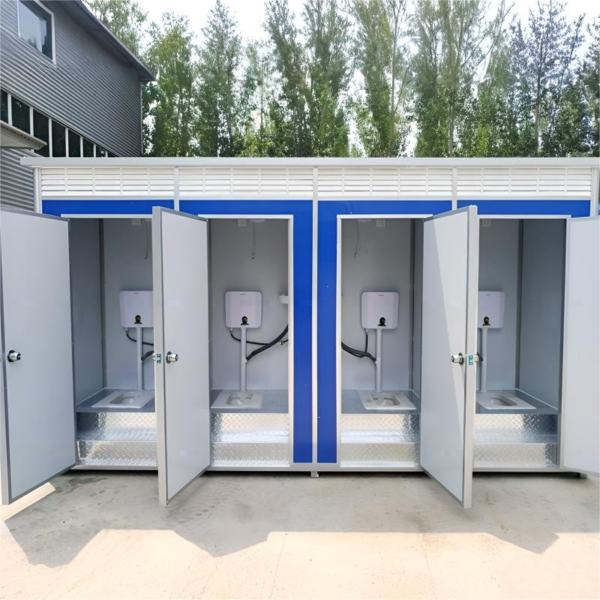

3-5 Person Connected Steel Portable Toilets

Product Specifications

Product Size

• 3-Person Unit Dimensions

  • Length × Width × Height: 3100 × 1100 × 2300 mm

• 4-Person Unit Dimensions

  • Length × Width × Height: 4100 × 1100 × 2300 mm

• 5-Person Unit Dimensions

  • Length × Width × Height: 5100 × 1100 × 2300 mm

Main Materials

• Exterior Wall: High-quality color steel sandwich panel (50mm thickness)
• Frame: Semi-circular aluminum alloy columns, 0.8mm thick, molded fabrication
• Interior Wall: Double-sided color steel insulation board (50mm thickness)
• Color: Both interior and exterior color steel panels are white

Roof

• Top insulated layer with 50mm color steel panel
• Aluminum channel edging on all four sides

Ceiling

• Integrated roof ceiling design

Base

• Main material: 40×60mm galvanized square tubes
• Auxiliary material: 20×40mm galvanized square tubes welded to form steel base frame
• Galvanized round tube feet with 7.5cm height

Flooring

• High-quality non-slip stainless steel floor, thickness 0.7mm

Door

• High-quality color steel semi-wave door
• Louver ventilation window at the middle-lower part of the door

Windows

• PVC steel louver windows (also installed on the toilet door)

Door and Window Edges

• U-shaped groove edging

Lock

• Stainless steel round ball lock

Insulation Material

• Class A insulation foam

Lighting

• LED energy-saving lamp
