29㎡ Modern Prefab A-Frame Cabin – Stylish, Durable, and Ready to Assemble

  • Compact & Functional – 1 bedroom, 1 bathroom, 29㎡ efficient space
  • Sturdy Structure – Lightweight steel-wood hybrid frame with galvanized steel
  • Weatherproof – Aluminum alloy decorative panels & waterproof membrane
  • Superior Insulation – 80mm single-sided glass wool insulation (24kg, formaldehyde-free)
  • Stylish Interiors – 600*600 wood-grain tiles or wooden flooring with skirting boards
  • Durable Walls – 12mm thick cement fiber board (exterior), 9mm OSB + bamboo fiber board (interior)
  • High-Quality Windows & Doors – Aluminum alloy for security & natural lighting
  • Fire-Resistant – 0.39mm breathable fire-resistant membrane
  • Easy to Transport & Install – Quick on-site assembly, cost-effective
  • Eco-Friendly & Sustainable – Low-emission, environmentally responsible materials
Indoor AreaFootprintDimensions (LWH)Layout

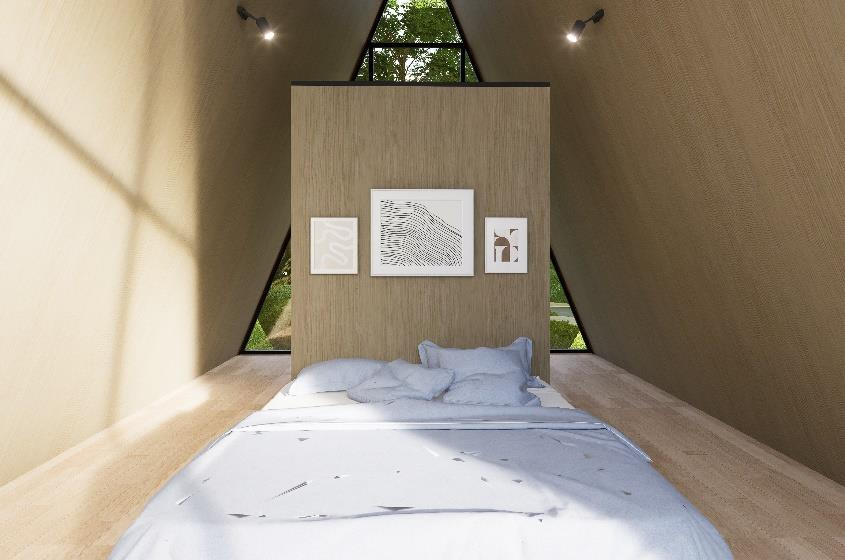

29㎡29㎡6m x 3m x 5m1 Bedroom, 1 Bathroom

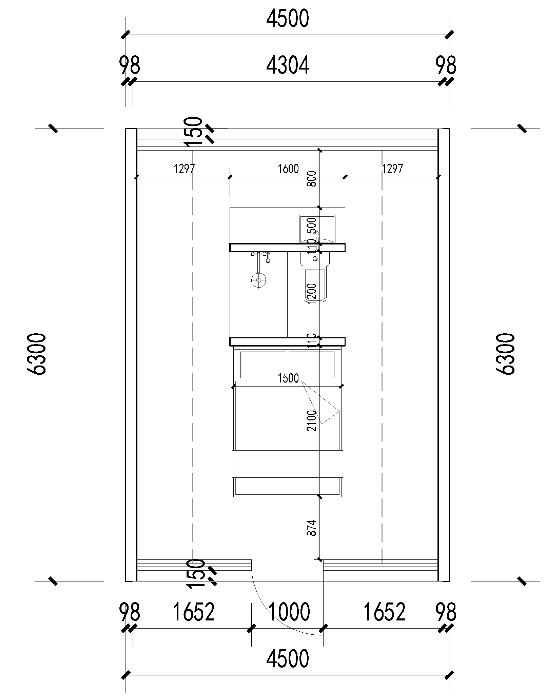

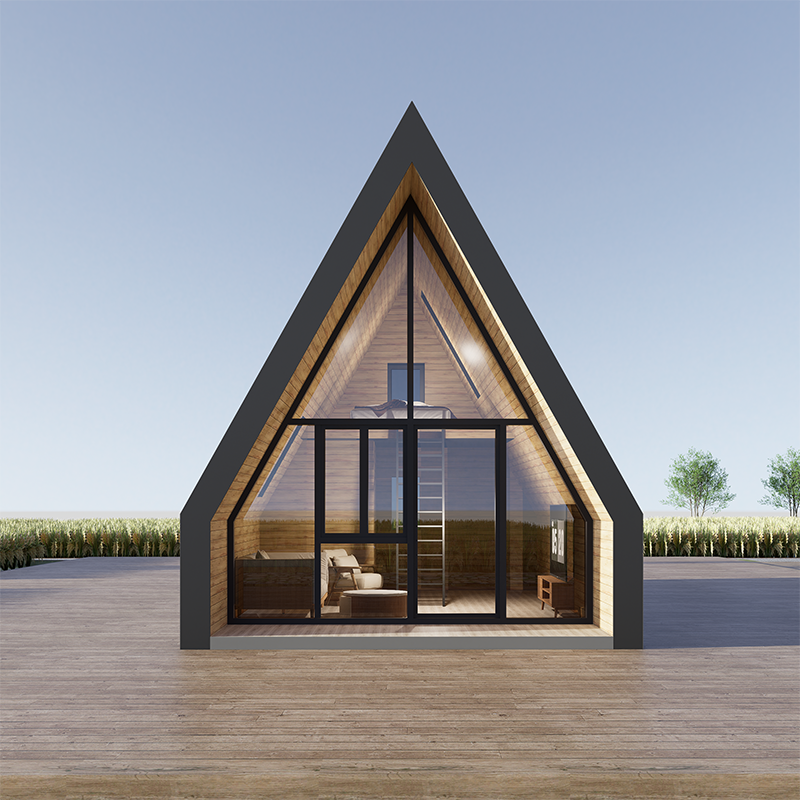

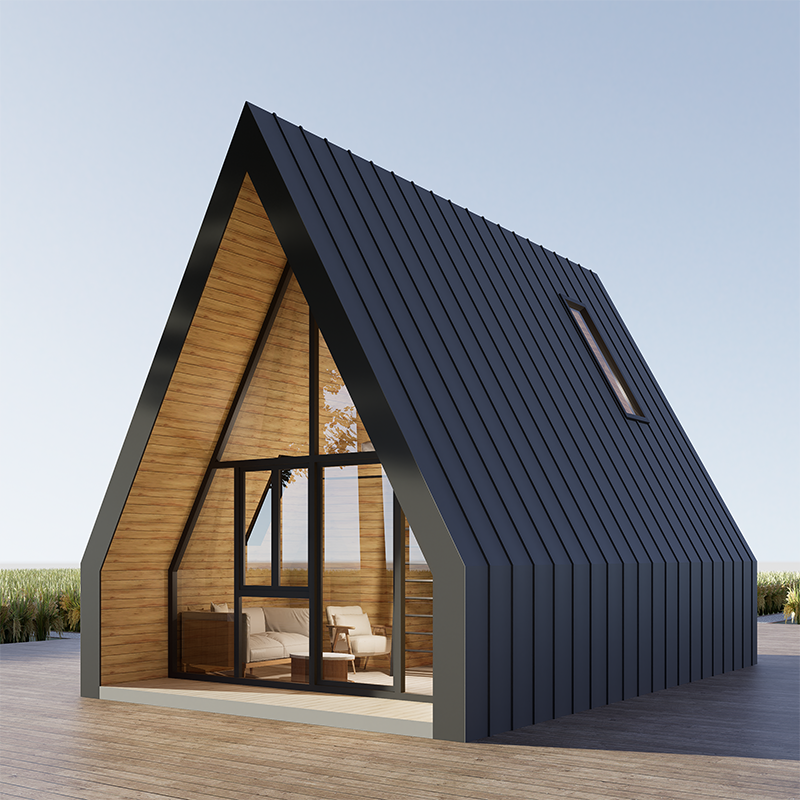

38㎡38㎡6.3m x 4.5m x 5.25m1 Bedroom, 1 Bathroom
54.8㎡45㎡6m x 3m x 6m2 Bedrooms, 1 Bathroom, 1 Living Room

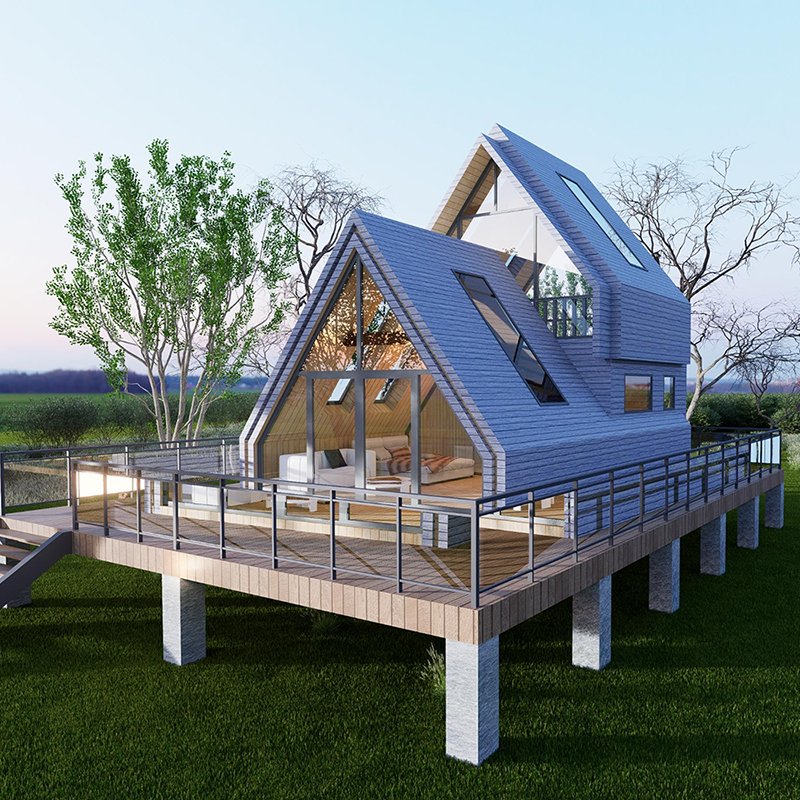

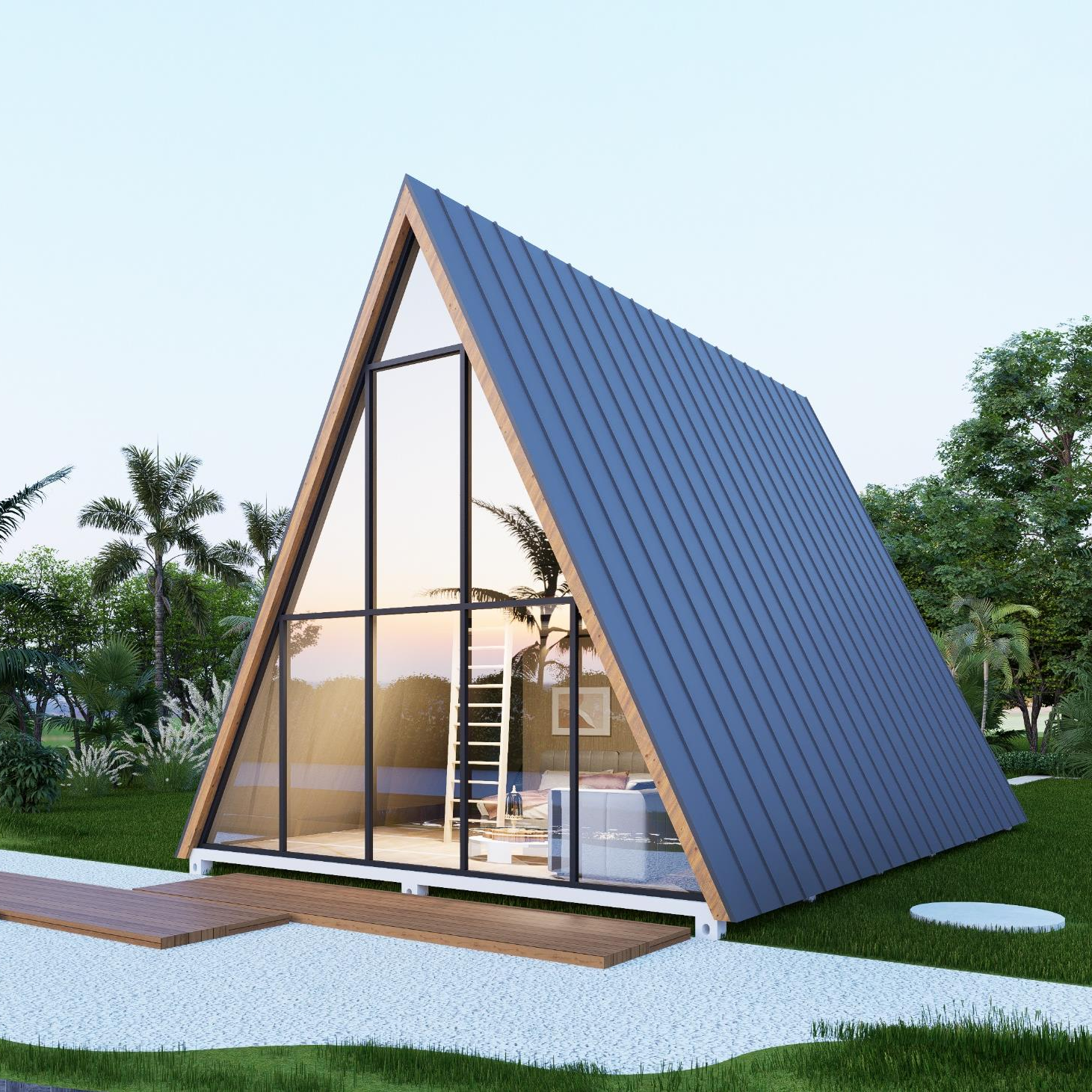

68㎡54㎡6m x 3m x 6m2 Bedrooms, 1 Bathroom, 1 Living Room
  • Main Frame System: Steel-wood hybrid structure, galvanized square steel, light steel keel
  • Main Connection System: Light steel keel accessories, anti-pull parts, flat connectors, wind-resistant tie bars, right-angle connectors
  • Roof & Waterproofing: Aluminum alloy decorative panels, aluminum alloy edge sealing, self-adhesive asphalt waterproof membrane
  • Floor Structure Board: OSB unidirectional particleboard (1220*2440*18mm)
  • Full House Insulation: 80mm single-sided glass wool insulation (24kg, formaldehyde-free)
  • Interior Flooring: 600*600 wood-grain tiles or wooden flooring with skirting boards
  • Bathroom Flooring: 300*300mm, 300*600mm light-colored anti-slip tiles
  • Interior Wall Finishing: 9mm OSB + bamboo fiber board
  • Exterior Wall Material: 12mm thick cement fiber board
  • Sound & Thermal Insulation: OSB unidirectional particleboard (Exterior: 9mm, Interior: 8mm)
  • Fire Resistance: 0.39mm breathable fire-resistant membrane
