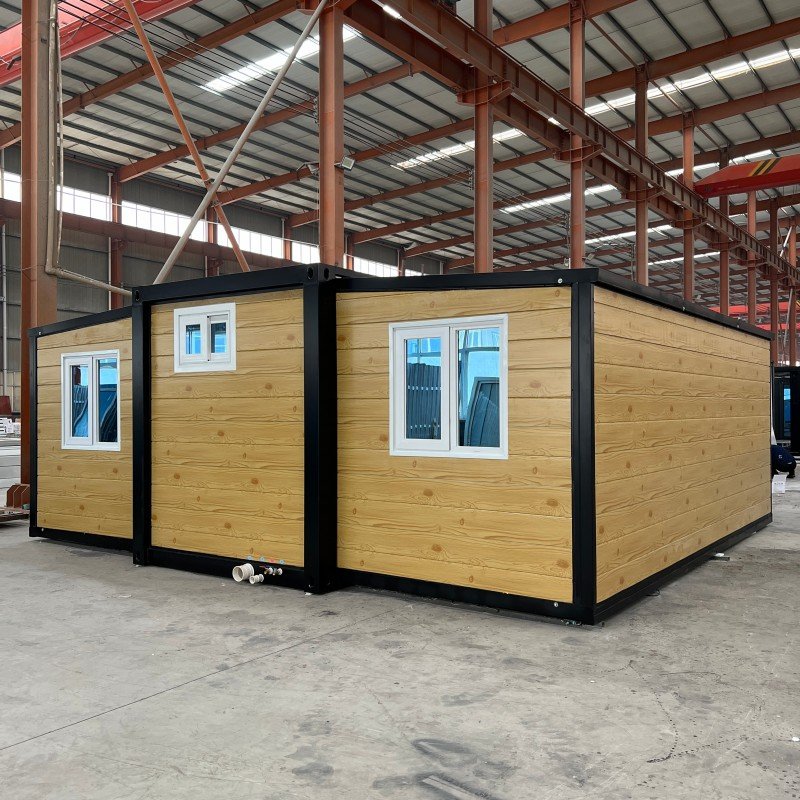

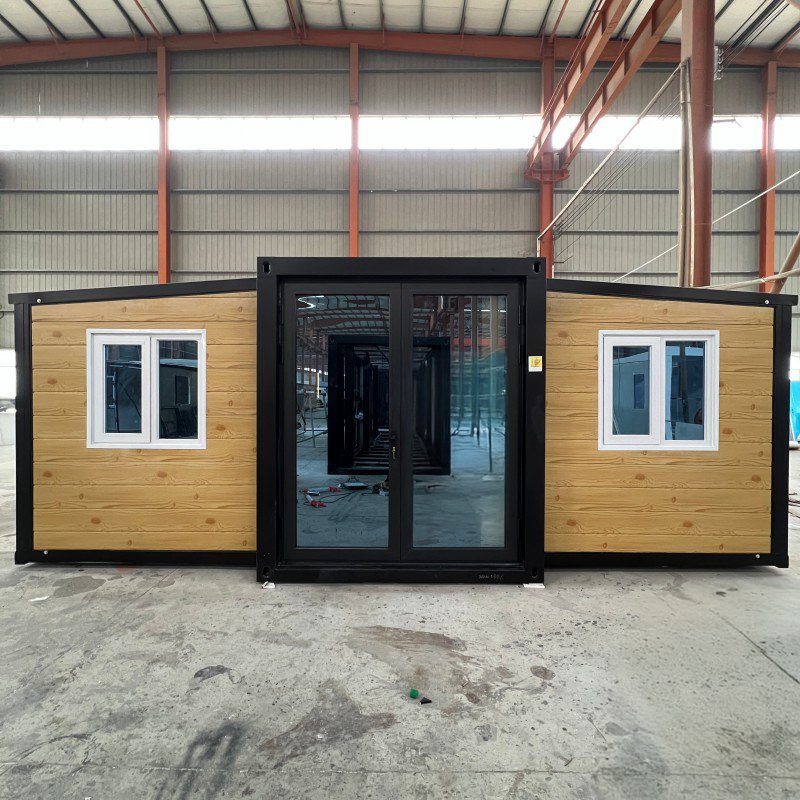

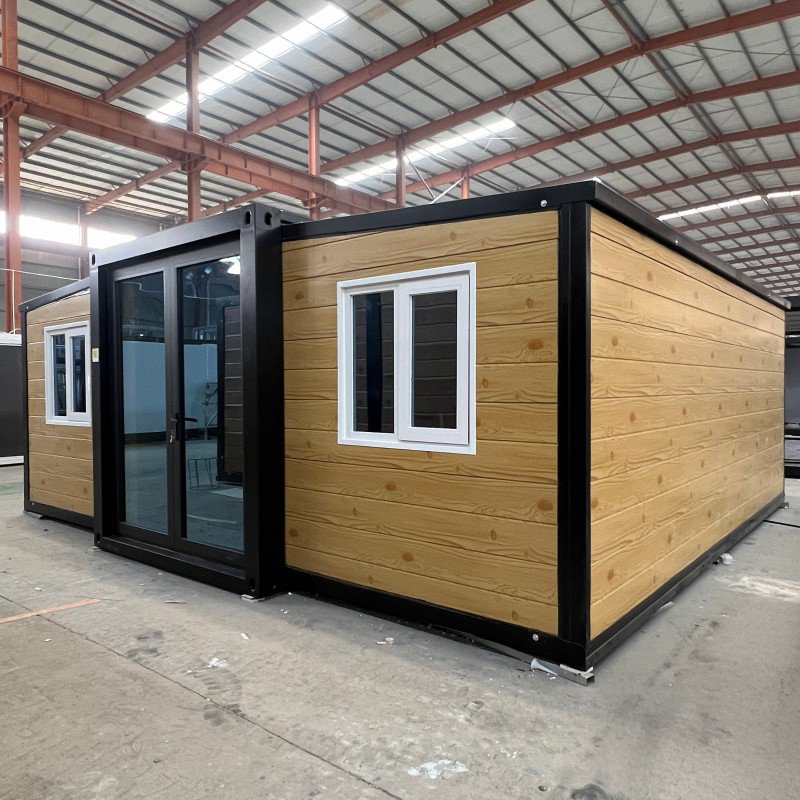

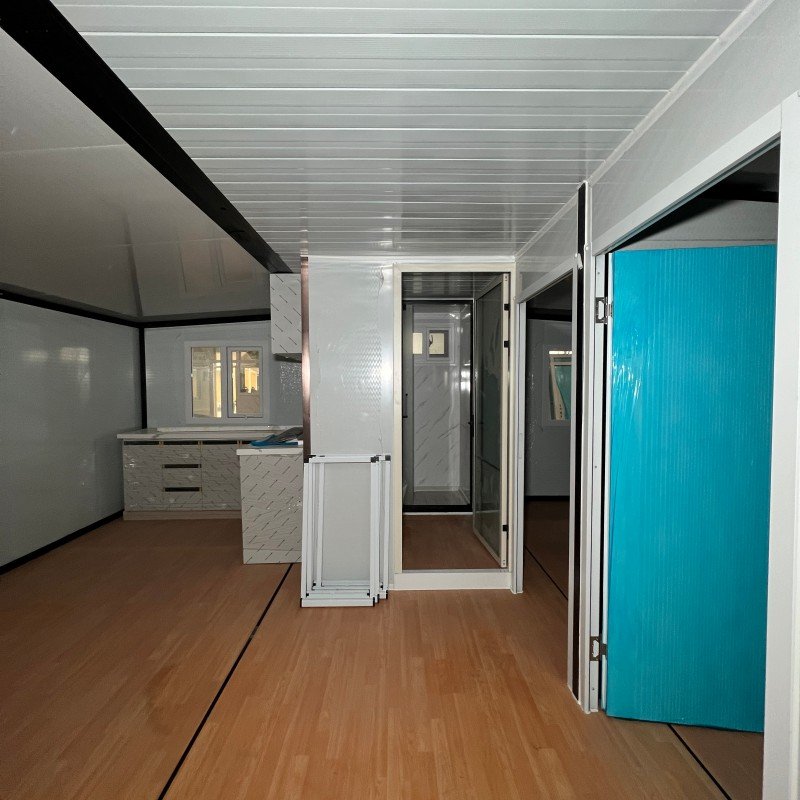

Transform your living experience with our 20FT Expandable Container House. Featuring two spacious bedrooms, this modular home offers easy setup and customization for various uses, including vacation accommodation. Built with high-quality materials, it combines durability, style, and sustainability.
| Basic Information | Expanded Size(mm)L*W*H | L5900*W6300*H2480 |
| Intermal Size(mm)L*W*H | L5640*W6140*H2240 | |

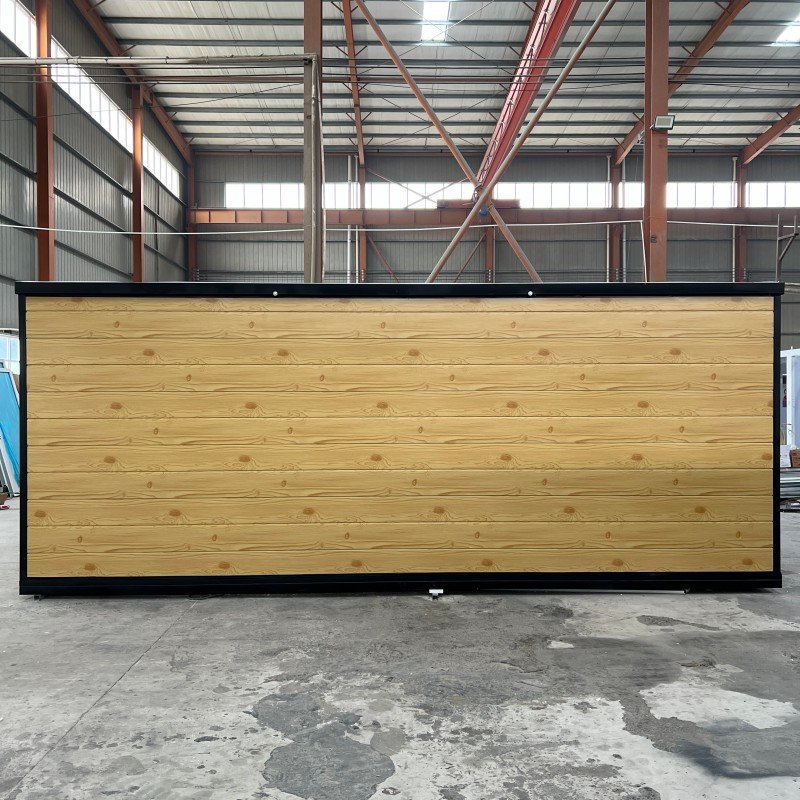

| Folded Size(mm)L*W*H | L5900*W2200*H2480 | |
| Total Floor Area(m²) | 36 | |
| Total weight (kg) | 3500-4500 | |
| Loading Quantity | 2 Sets/40HQ | |
| Framework | Top Beam | Galvanized square tube 80*100*2.5mm Q235 |
| Main Column | Galvanized folding part 150*210*2.0mm Q235 | |
| Subframe | Galvanized square tube 40*60*1.5mm Q235 | |
| Corner Fitting | Galvanized steel 210*150*160*4mm Q235 | |
| Hinge | Gavanized thickened hinges Q235 | |
| Floor | Floor of the Middle Room | 18mm cement floor + 2mm PVC leather floor |
| Floor of Side Room | 18mm bamboo plywood floor + 2mm PVC leather floor | |
| Thermal Insulation Material | Side Wall | 75mm sandwich panel, 0.35mm double-sided colored steel panel. (optional thermal insulation materials: rock wall, EPS and PU). The common sandwich material is EPS, unit weight. 12kg/m³ |
| Partition Wall | 50mm sandwich panel, 0.35mm double-sided colored steel panel, same thermal insulation material as above. |
|
| Roof | 50mm sandwich panel 0.35mm double-sided colored steel panel, same thermal insulation material as above. |
|
| Electrical System | Parameter | 1.Can be customized, our standard wire is GB wire:incoming wire 6mm², air-conditioner socket 4mm², socket 2.5mm2,light 1.5mm² 2.Circuit breaker system: main switch 2P63A*1pc, leakage protector 2P43AV2P32A/1P20 1pc each. 3.Light: LED tri-proof ceiling light*6pcs 4.Socket general three-hole socket, can be customized. |
| Door and Window System | Entry Door | Steel security door (optional materials: broken bridge aluminum itanium magnesium alloy, and aluminum alloy). |
| Window | PVC double glass casement window(optional materials: broken bridge uminum and aluminum alloy). Common size: 930*930mm*6pcs,and 500*500mm*1pc |
We Xiamen Umd Industrial Co., Ltd. hereby declare that the goods exported to AustraliaDO NOT contain asbestos HAVE NOT been exposed to asbestos in their manufacture.
