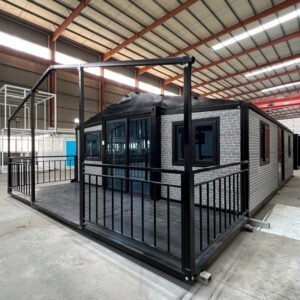

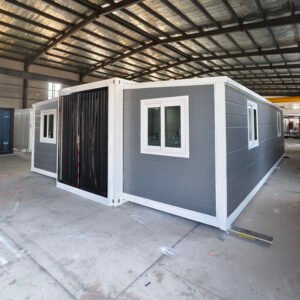

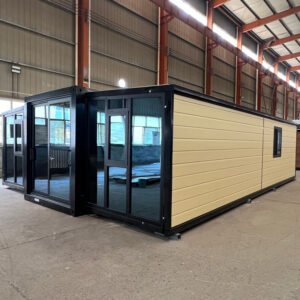

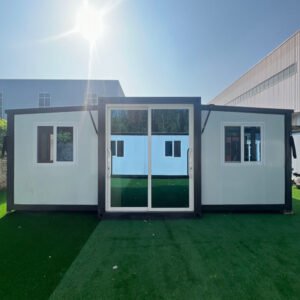

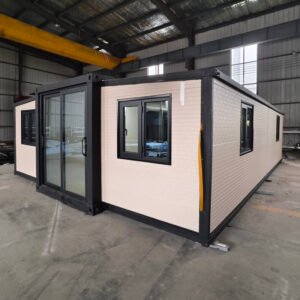

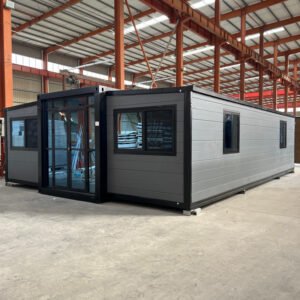

The 30FT Expandable House offers more space than the 20FT model, ideal for families or larger workspaces. This ready made home unfolds in hours, offering the convenience of prefabricated container homes with a container house modern design. Perfect for those seeking a fold up house with flexibility and efficiency.
| Basic Information | Expanded Size(mm)L*W*H | L9000*W6300*H2480 |
| Intermal Size(mm)L*W*H | L8740*W6140*H2200 | |
| Folded Size(mm)L*W*H | L9000*W2200*H2480 | |
| Total Floor Area(m²) | 54 | |
| Total weight (kg) | 4300-6000 | |
| Loading Quantity | 1 Sets/40HQ | |
| Framework | Top Beam | Galvanized square tube 80*100*2.5mm Q235 |
| Main Column | Galvanized folding part 150*210*2.0mm Q235 | |
| Subframe | Galvanized square tube 40*60*1.5mm Q235 | |
| Corner Fitting | Galvanized steel 210*150*160*4mm Q235 | |
| Hinge | Gavanized thickened hinges Q235 | |
| Floor | Floor of the Middle Room | 18mm cement floor + 2mm PVC leather floor |
| Floor of Side Room | 18mm bamboo plywood floor + 2mm PVC leather floor | |
| Thermal Insulation Material | Side Wall | 75mm sandwich panel, 0.35mm double-sided colored steel panel. (optional thermal insulation materials: rock wall, EPS and PU). The common sandwich material is EPS, unit weight. 12kg/m³ |
| Partition Wall | 50mm sandwich panel, 0.35mm double-sided colored steel panel, same thermal insulation material as above. |
|
| Roof | 50mm sandwich panel 0.35mm double-sided colored steel panel, same thermal insulation material as above. |
|
| Electrical System | Parameter | 1.Can be customized, our standard wire is GB wire:incoming wire 6mm², air-conditioner socket 4mm², socket 2.5mm2,light 1.5mm² 2.Circuit breaker system: main switch 2P63A*1pc, leakage protector 2P43AV2P32A/1P20 1pc each. 3.Light: LED tri-proof ceiling light*6pcs 4.Socket general three-hole socket, can be customized. |
| Door and Window System | Entry Door | Steel security door (optional materials: broken bridge aluminum itanium magnesium alloy, and aluminum alloy). |

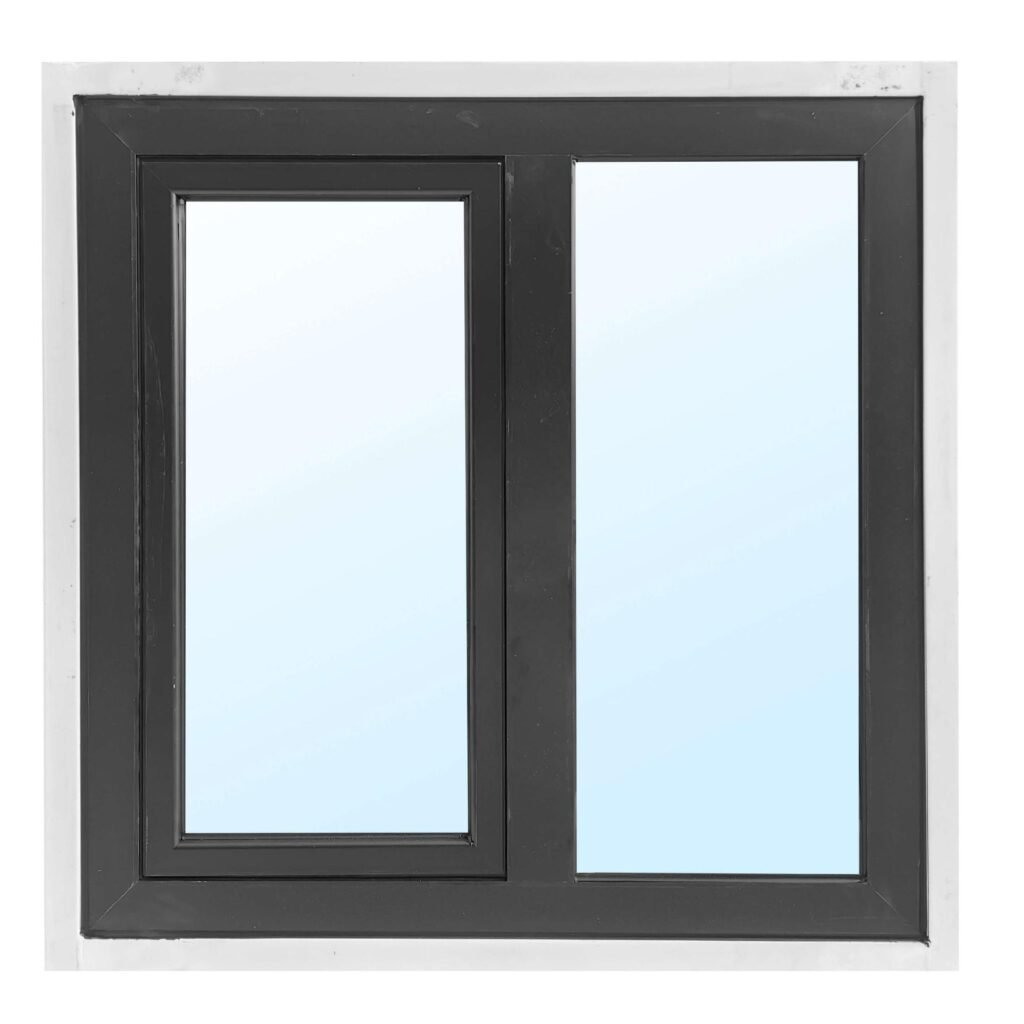

| Window | PVC double glass casement window(optional materials: broken bridge uminum and aluminum alloy). Common size: 930*930mm*6pcs,and 500*500mm*1pc |

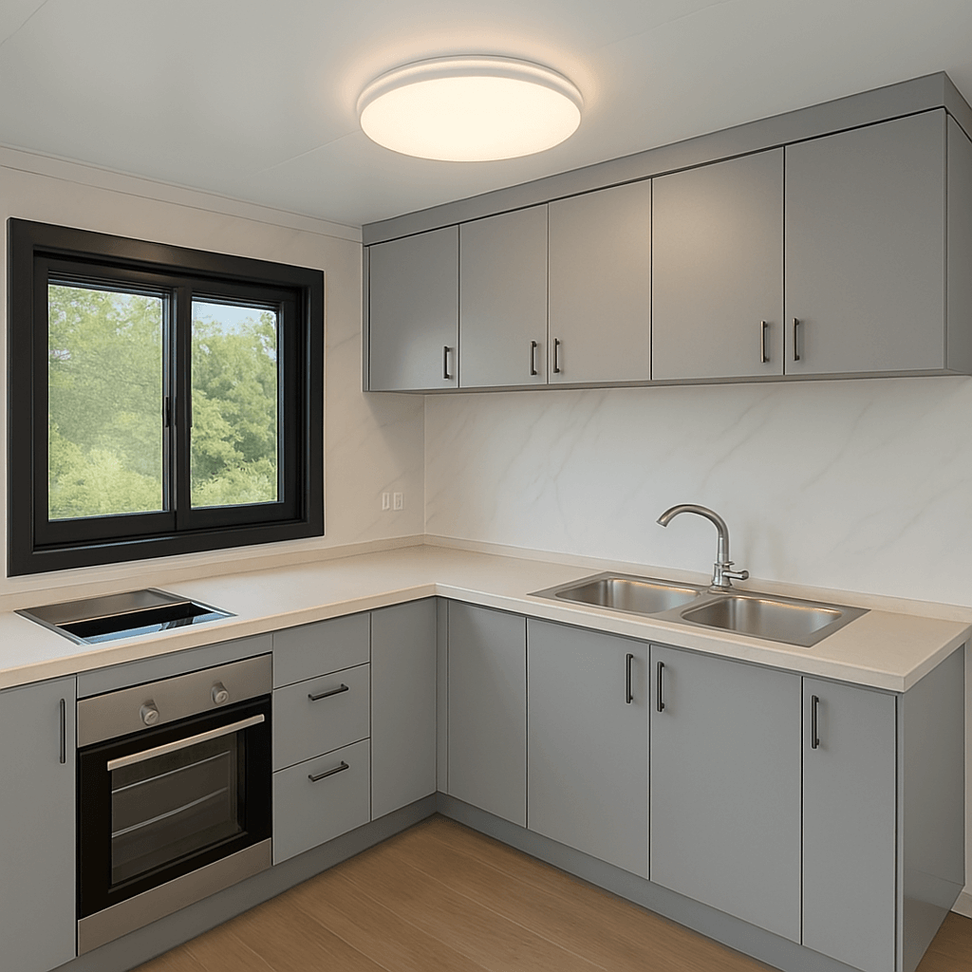

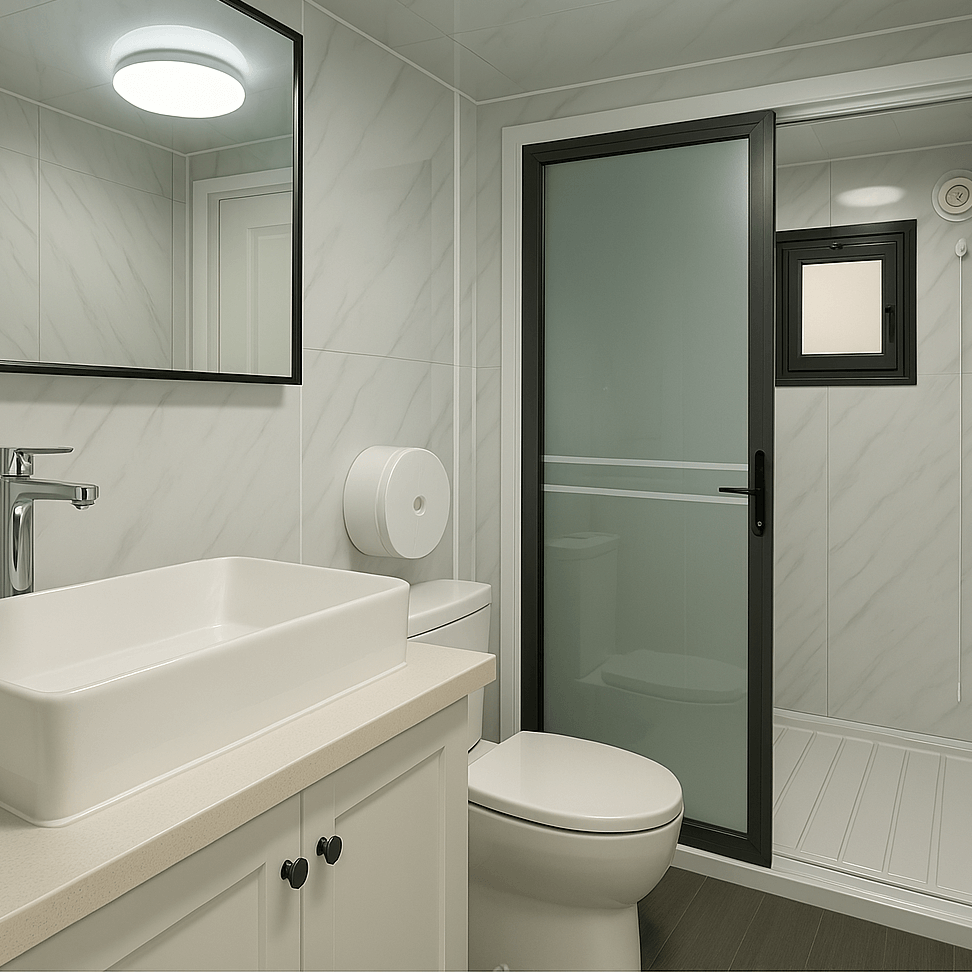

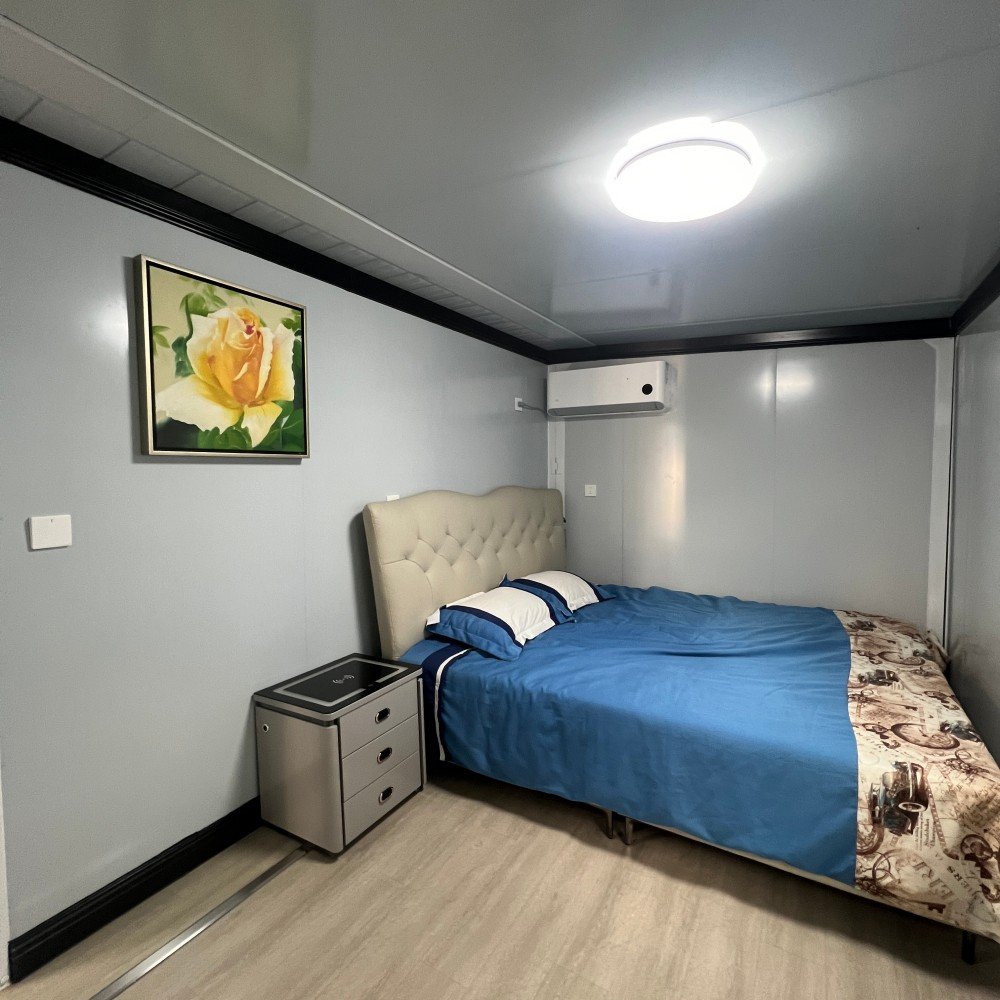

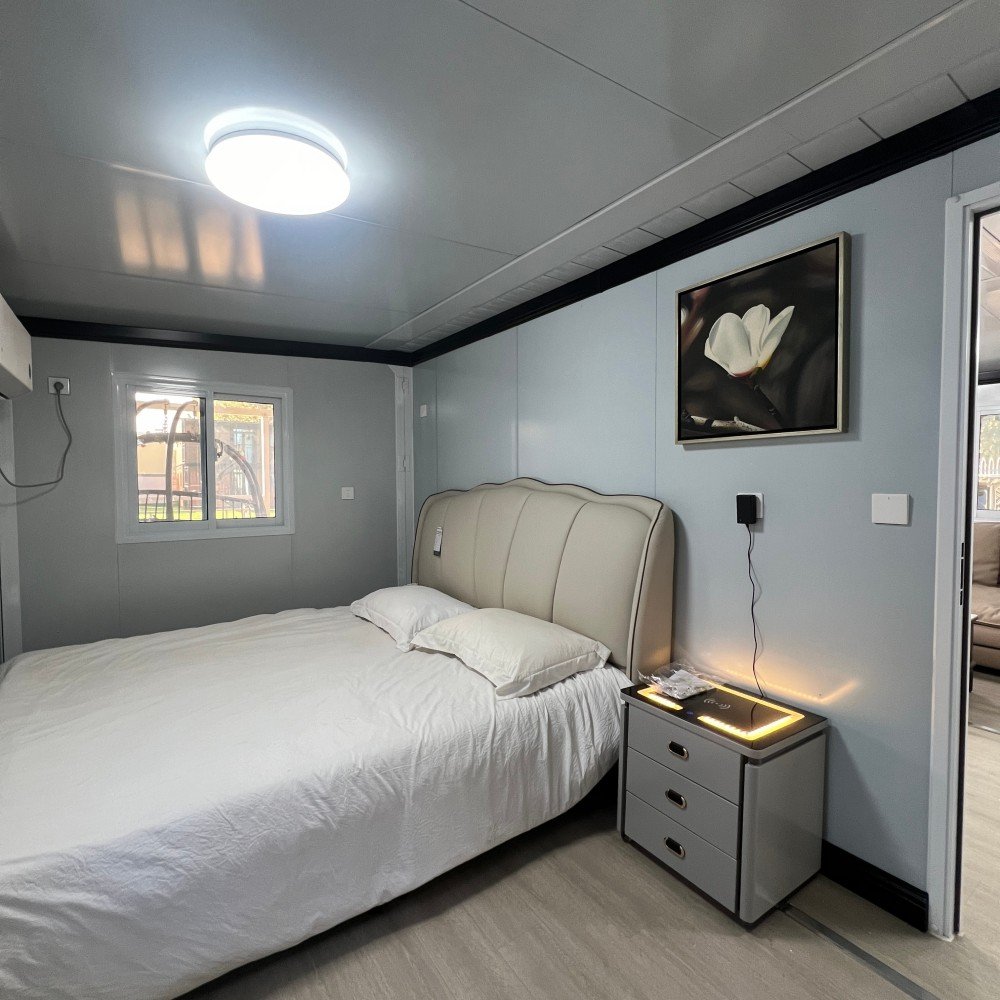

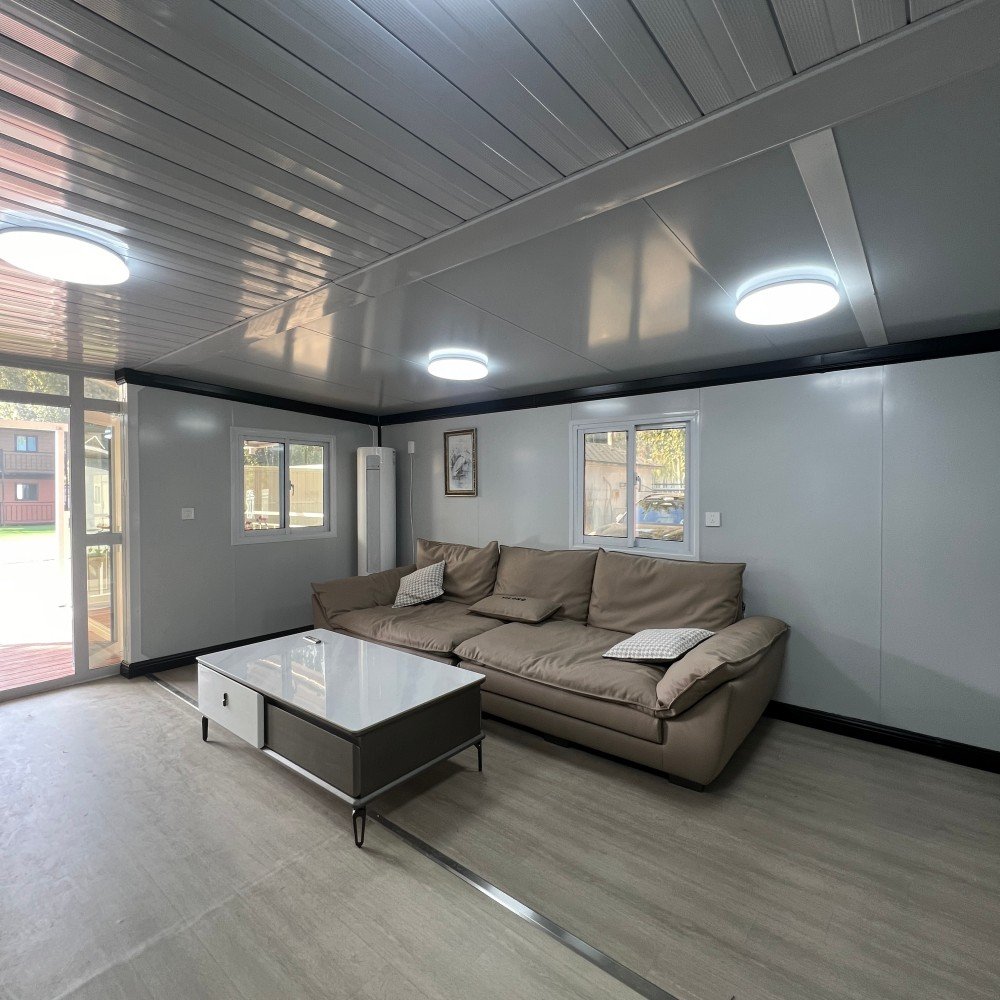

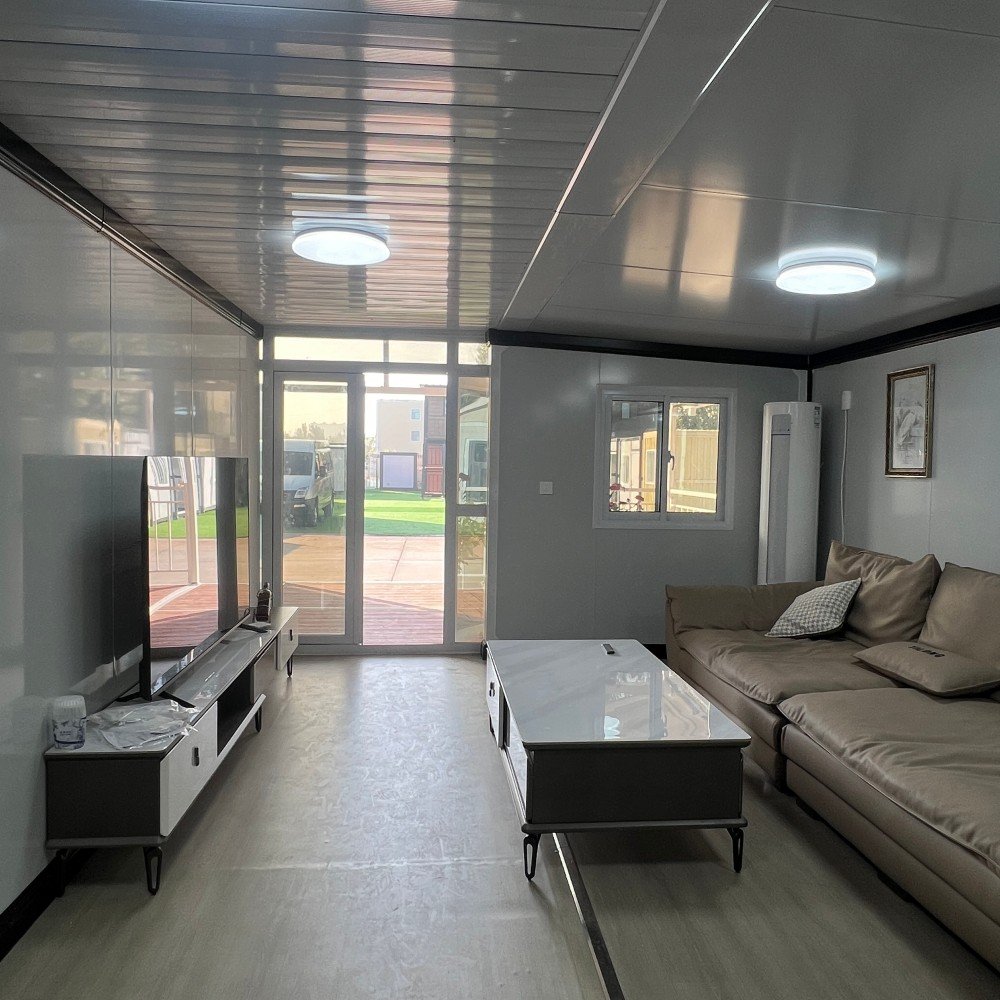

The 30FT Expandable House can be configured into a variety of layouts, perfect for families, small offices, or even larger living spaces.
Need a different layout? We offer free customization based on your ideas.
Design your 30FT expandable house, your way – from interior layout to outdoor features.

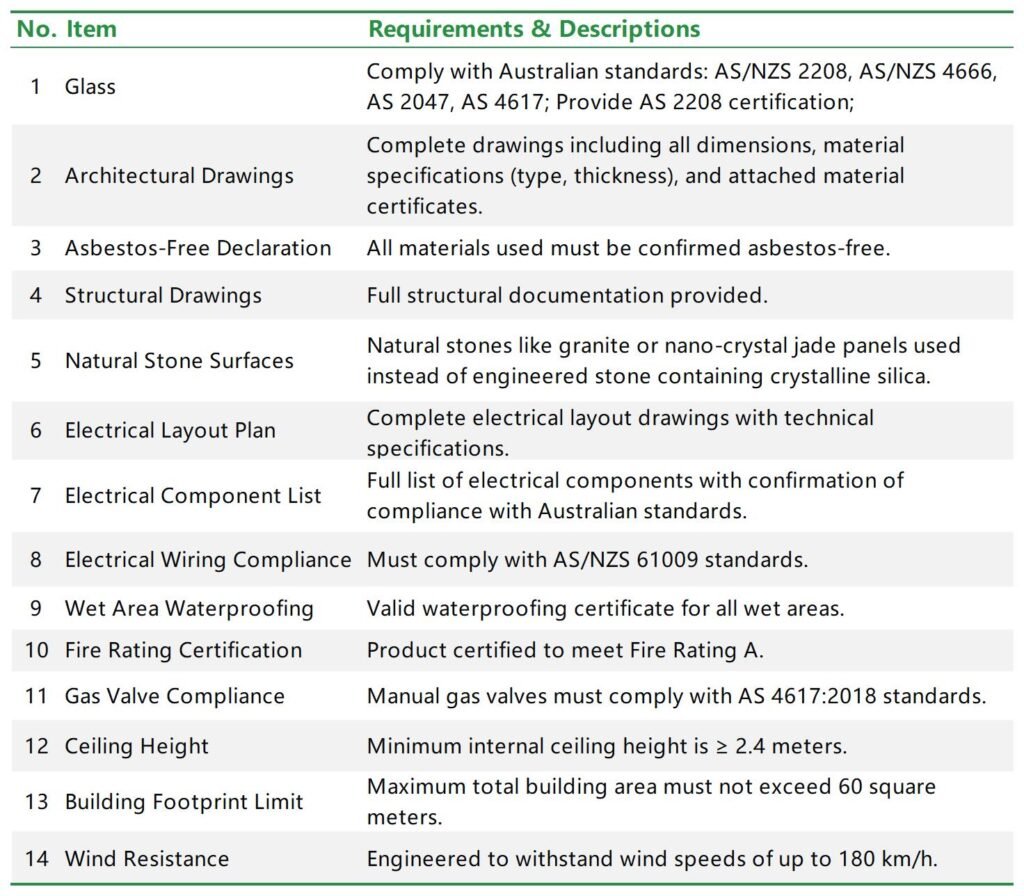

We Xiamen Umd Industrial Co., Ltd. hereby declare that the goods exported to AustraliaDO NOT contain asbestos HAVE NOT been exposed to asbestos in their manufacture.

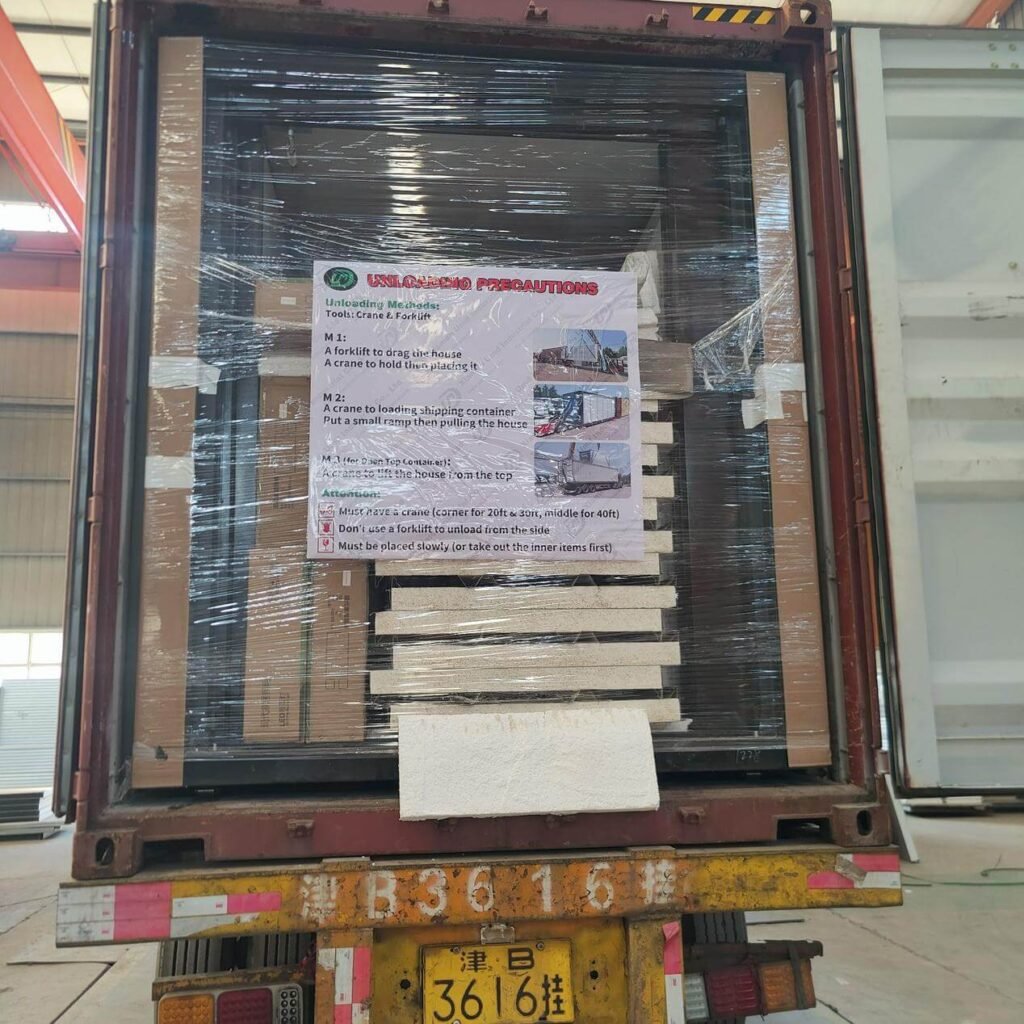

All units are securely packed for safe global delivery.

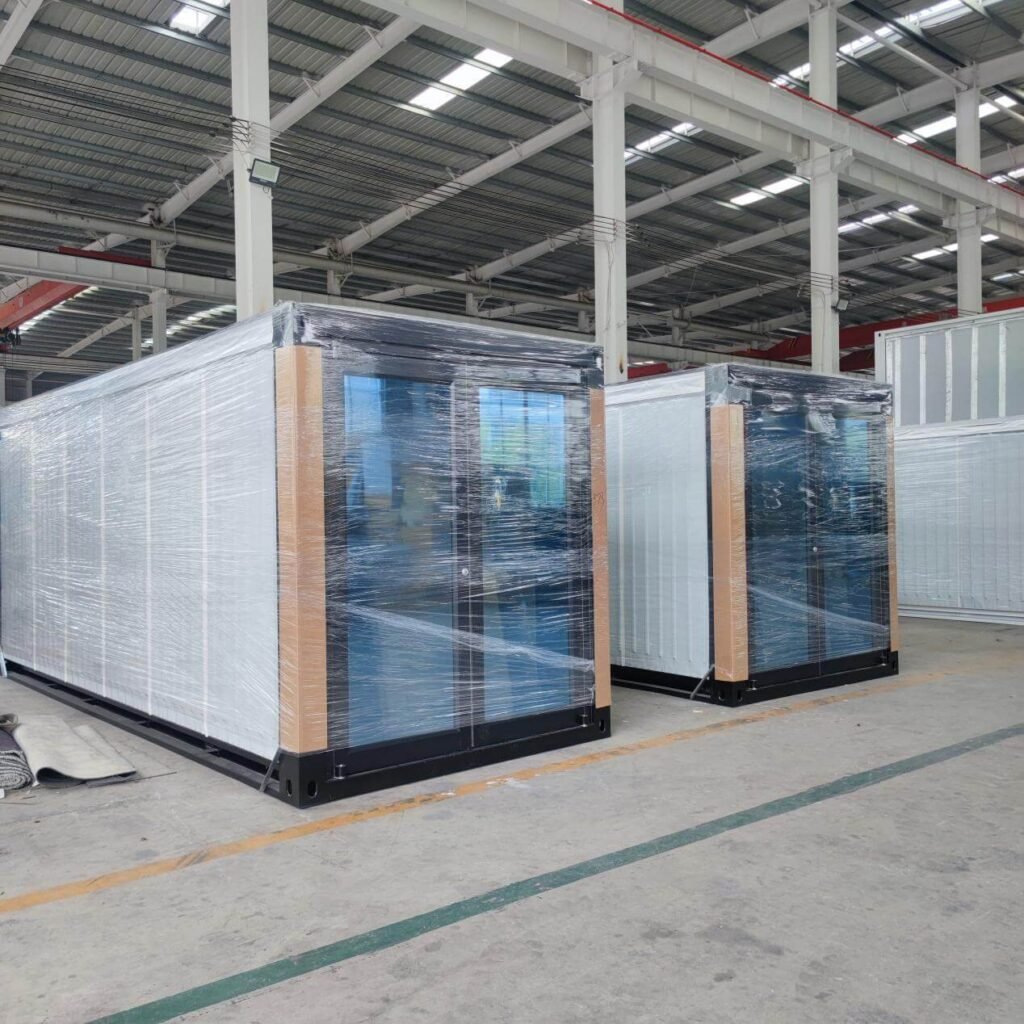

After cleaning and passing factory and client inspection, the finished unit is packed with protective materials and stored for shipment to prevent damage during transport.

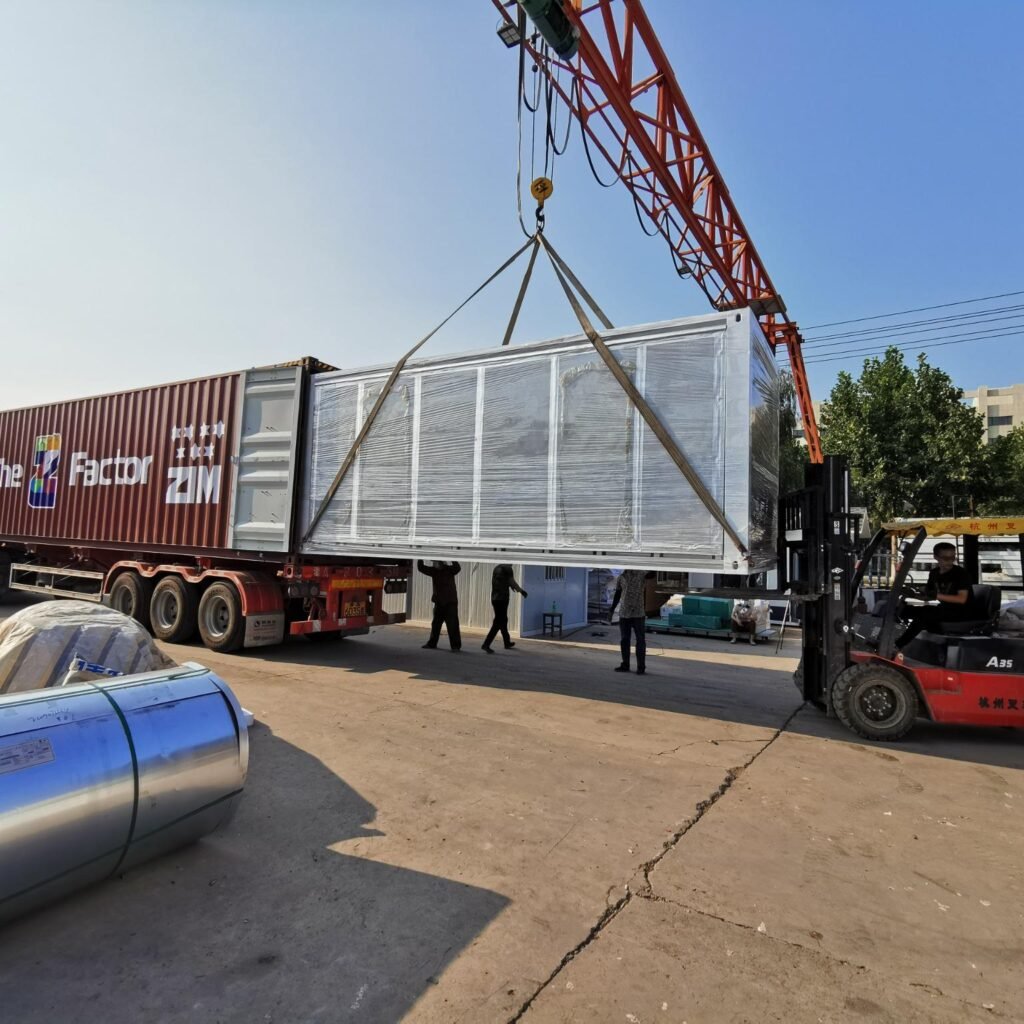

M1:

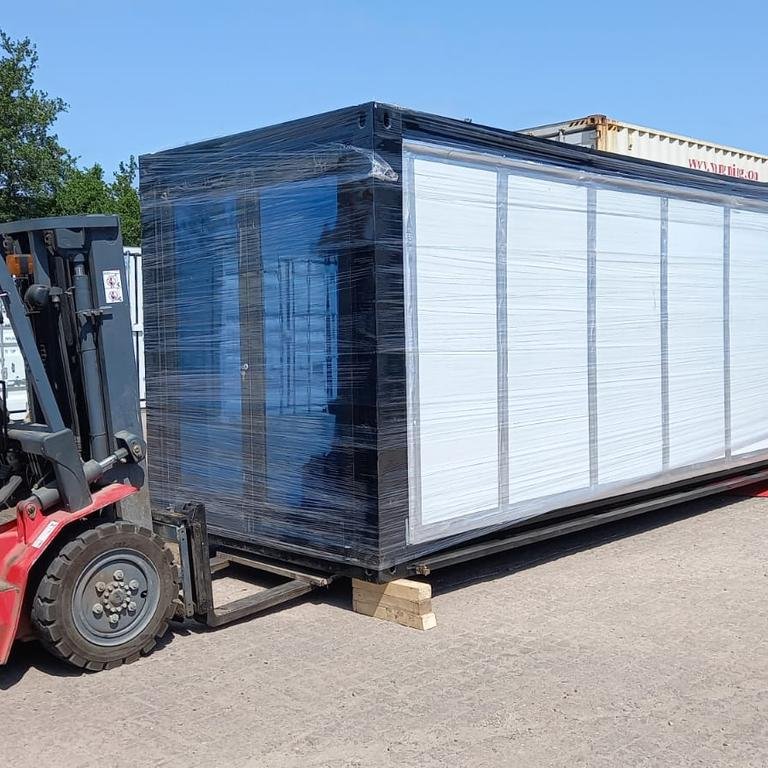

Use a forklift to drag the house out, and a crane to hold and position it.
M2:
Use a crane to pull the unit out with a ramp placed under the container.

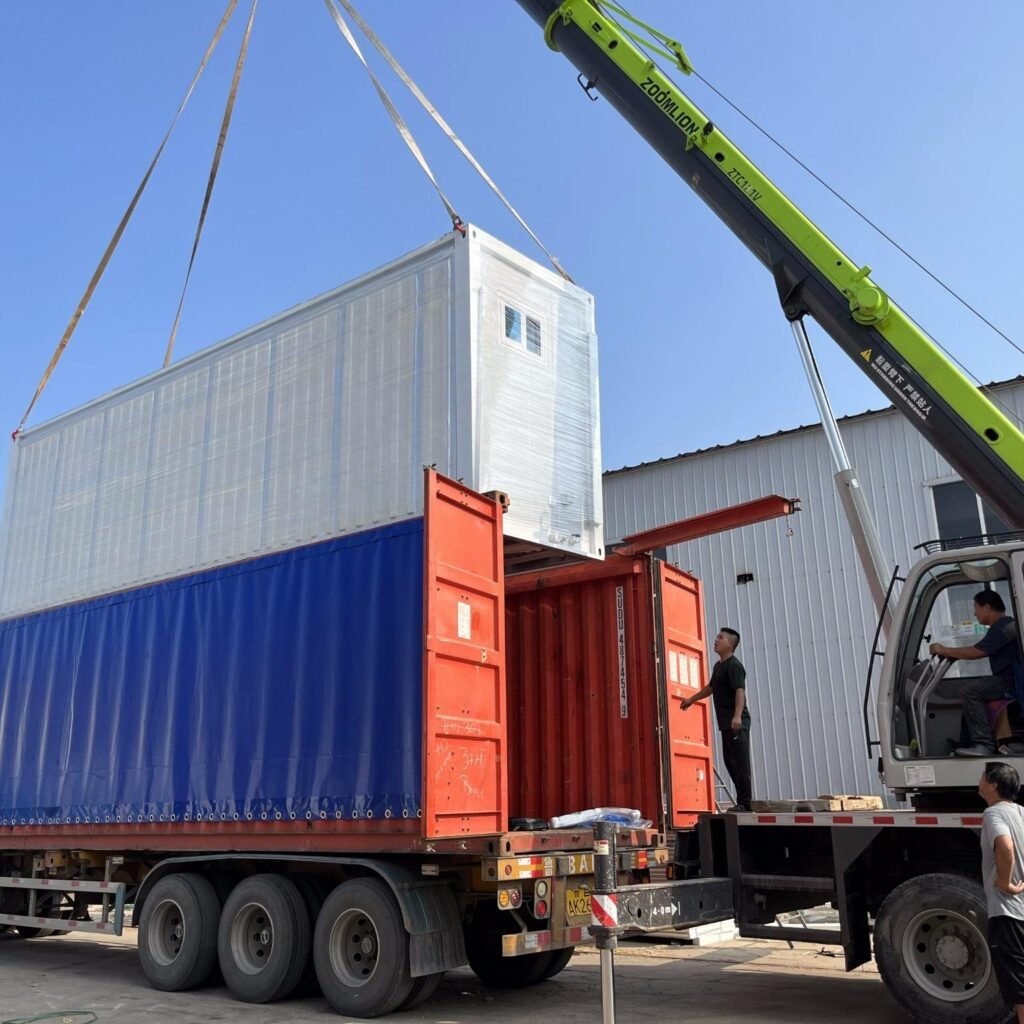

M3 (for Open Top Containers):
Lift the house vertically using a crane from the top.
